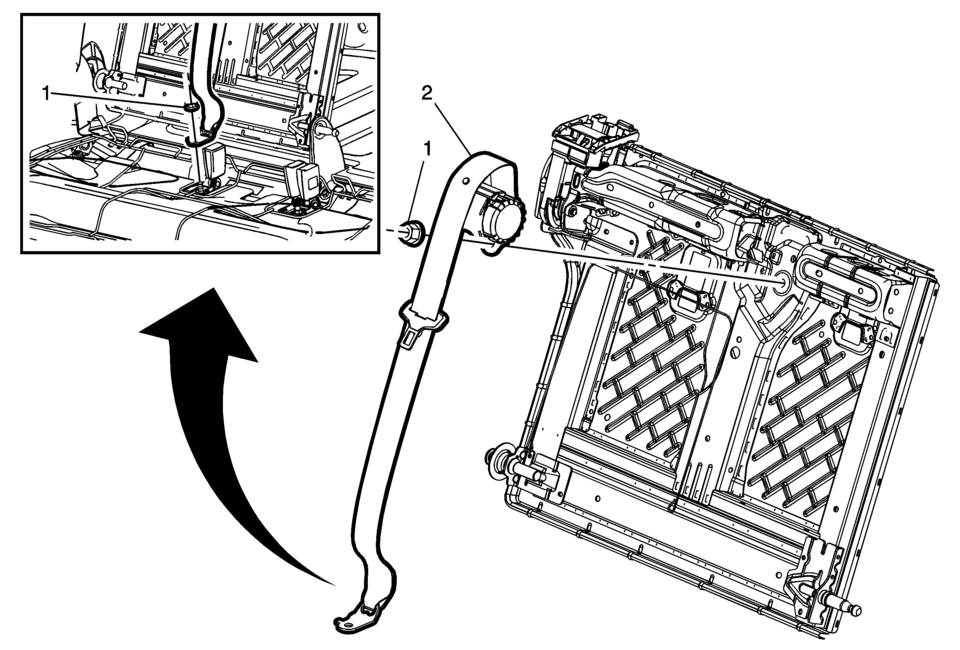

Rear Seat Center Shoulder Belt Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation.
  2. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation.
  3. Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement.

1

Rear Seat Center Shoulder Belt Fastener (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

2

Rear Seat Center Shoulder Belt Assembly
