Rear Seat Cushion Cover and Pad Replacement

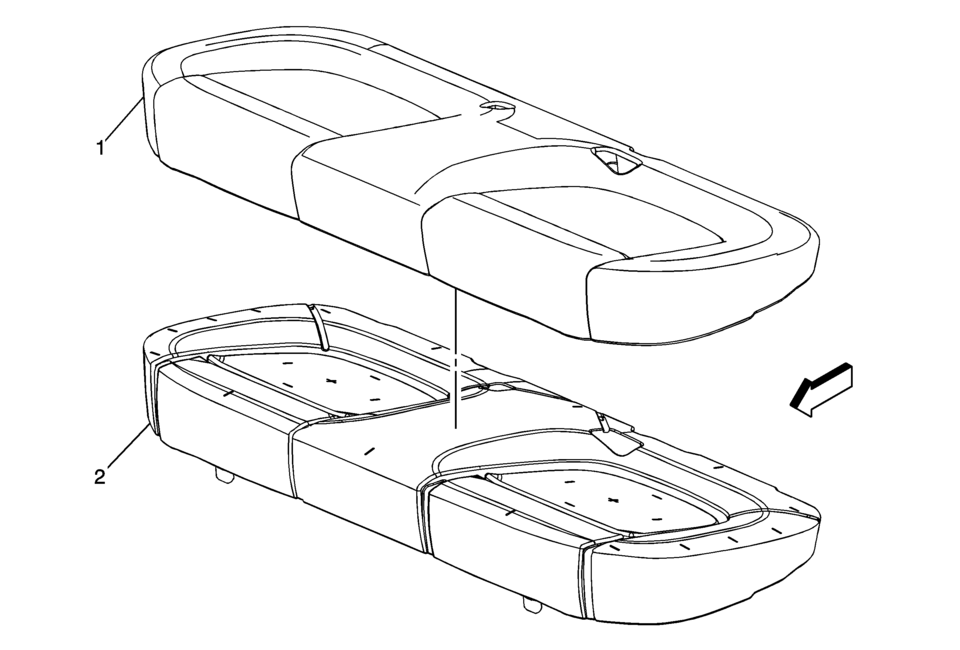

Callout

Component Name

Preliminary Procedure

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation

1

Rear Seat Cushion Cover

Procedure

  1. Remove the hog rings that secure the rear seat cushion cover to the pad.
  2. Pull the cover away from the pad to disengage any retainers.

Note:

When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.

2

Rear Seat Cushion Pad
