Rear Seat Latch Replacement

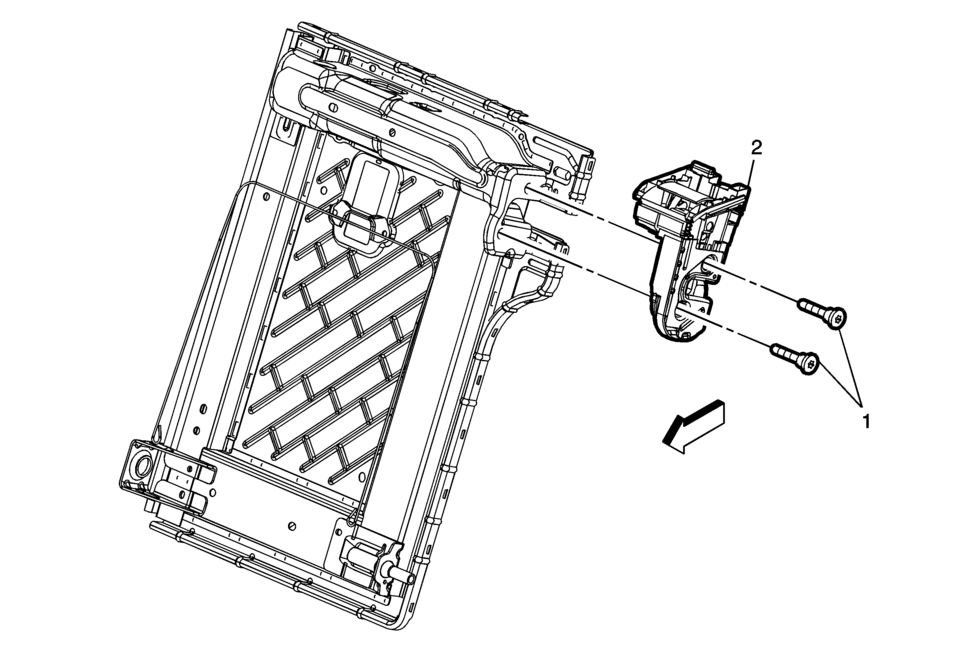

Callout

Component Name

Preliminary Procedures

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation.
  2. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement.

1

Rear Seat Latch Fasteners (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


45?€‰Y (33?€‰lb?€‰ft)

2

Rear Seat Latch
