Chevrolet Sonic Repair Manual: Rear Side Door Window Rear Guide Replacement

Chevrolet Sonic Repair Manual / Body / Glass & Windows / General / Rear Side Door Window Rear Guide Replacement



Rear Side Door Window Rear Guide Replacement

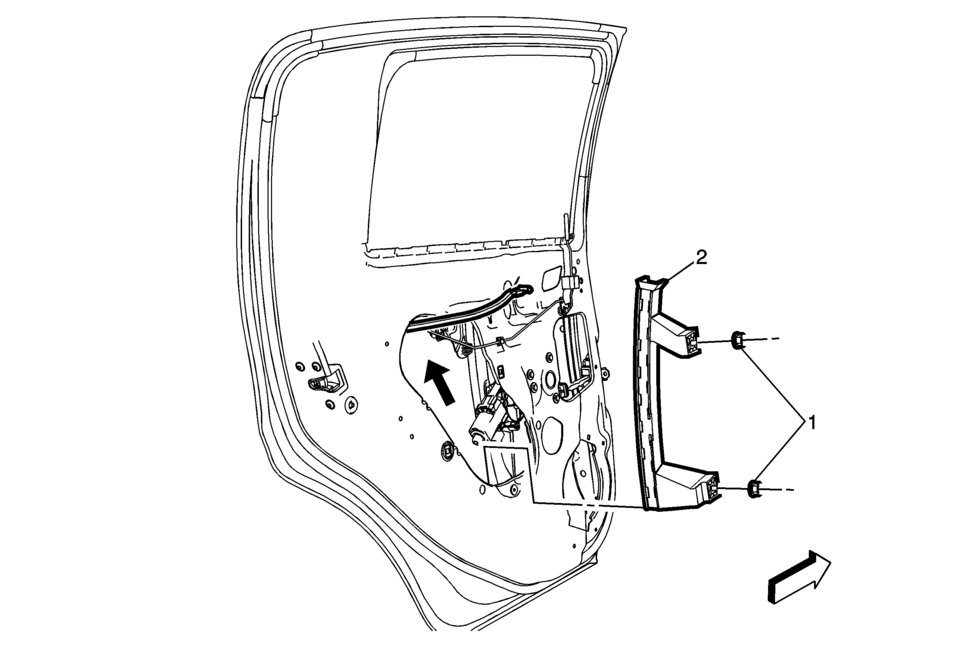

Callout

Component Name

Preliminary Procedure

Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement.

1

Rear Side Door Window Rear Guide Nut (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Procedure

  1. Remove the rear side door water deflector.
  2. Do Not remove the window from the vehicle, raise the window to the fully up position.
  3. Pull the weatherstrip out from the inner channel of the guide.
Tighten


11?€‰Y?€‰(97?€‰lb?€‰in)

2

Rear Side Door Window Rear Guide

Tip:

Inspect the door window for proper operation before installing the door trim panel.
