Chevrolet Sonic Repair Manual: Front Upper Grille Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Front Grille / Front Upper Grille Replacement



Front Upper Grille Replacement

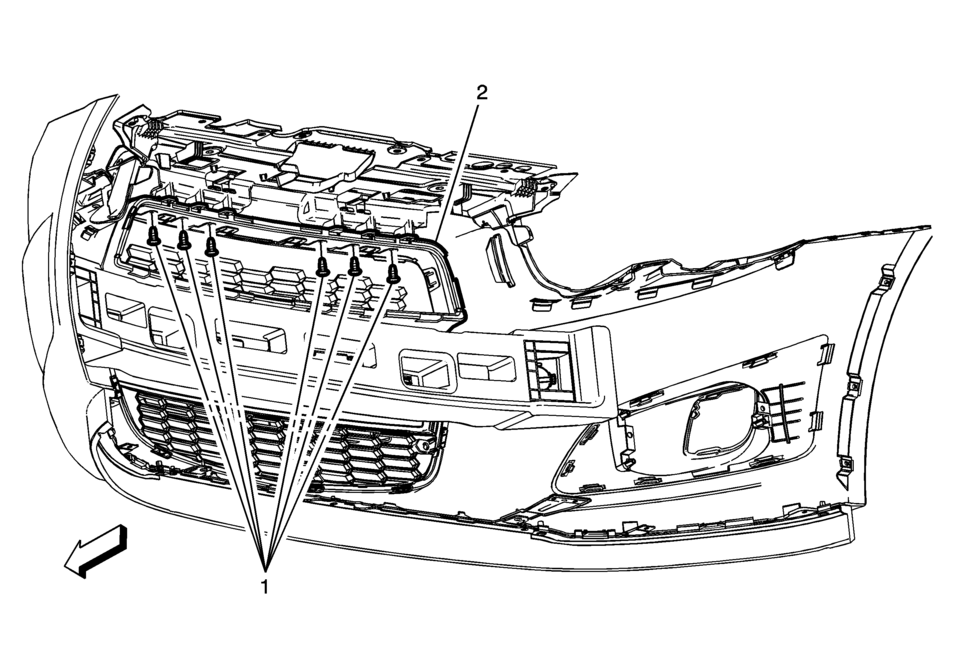

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Radiator Upper Grille Assembly Screw (Qty:?€‰6)

Caution:

Refer to Fastener Caution.

2

Radiator Upper Grille Assembly

Procedure

Release the outer upper grille locking tabs from the front bumper fascia and push the grille assembly outward away from the front bumper fascia assembly.

Front Lower Grille Replacement
Front Lower Grille Replacement Callout Component Name Preliminary Procedures Remove the front bumper fascia assembly. Refer to Fron ...

Radiator Grille Bumper Replacement
Radiator Grille Bumper Replacement Callout Component Name Preliminary Procedure Remove the front bumper fascia. Refer to Front ...
