Radiator Grille Bumper Replacement

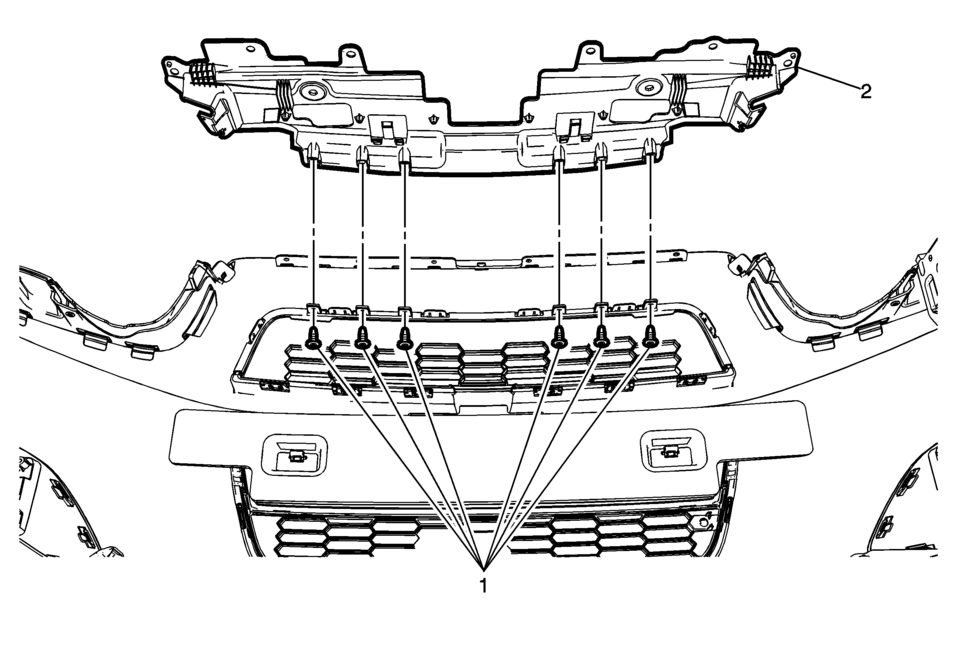

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Radiator Grille Bumper Screw (Qty:?€‰6)

Caution:

Refer to Fastener Caution.

2

Radiator Grille Bumper

Procedure

Pull gently on each side of the radiator grille bumper to disengage from the front bumper fascia.
