Chevrolet Sonic Repair Manual: Remote Control Door Lock Receiver Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the windshield outside moisture sensor cover. Refer to Windshield Outside Moisture Sensor Cover Replacement. |
|
|

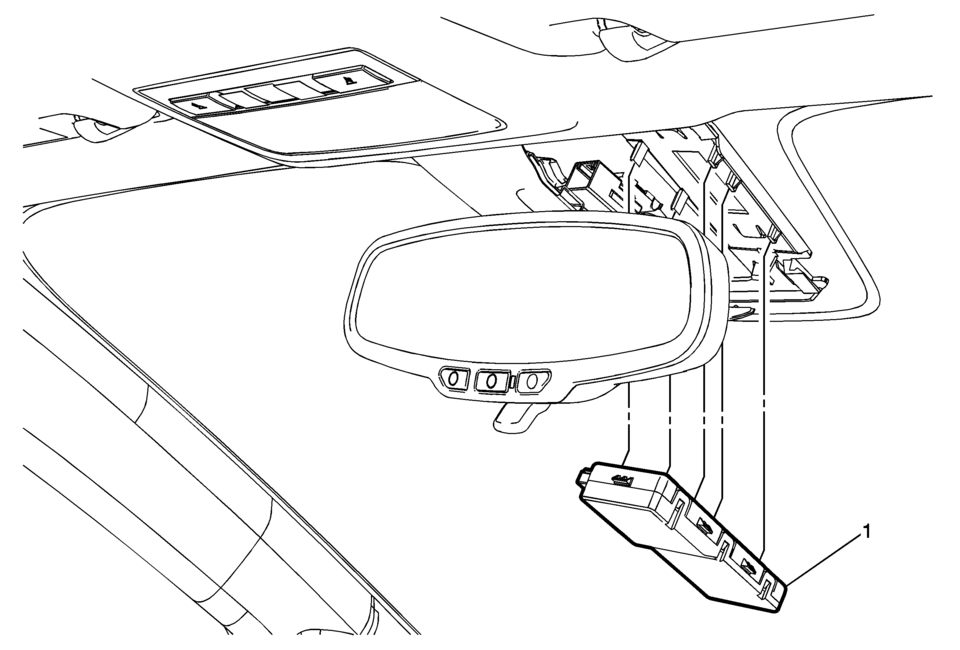

1 |
Remote Control Door Lock Receiver Procedure
|
Remote Control Door Lock Receiver Programming and Setup
