Secondary Air Injection Check Valve Replacement

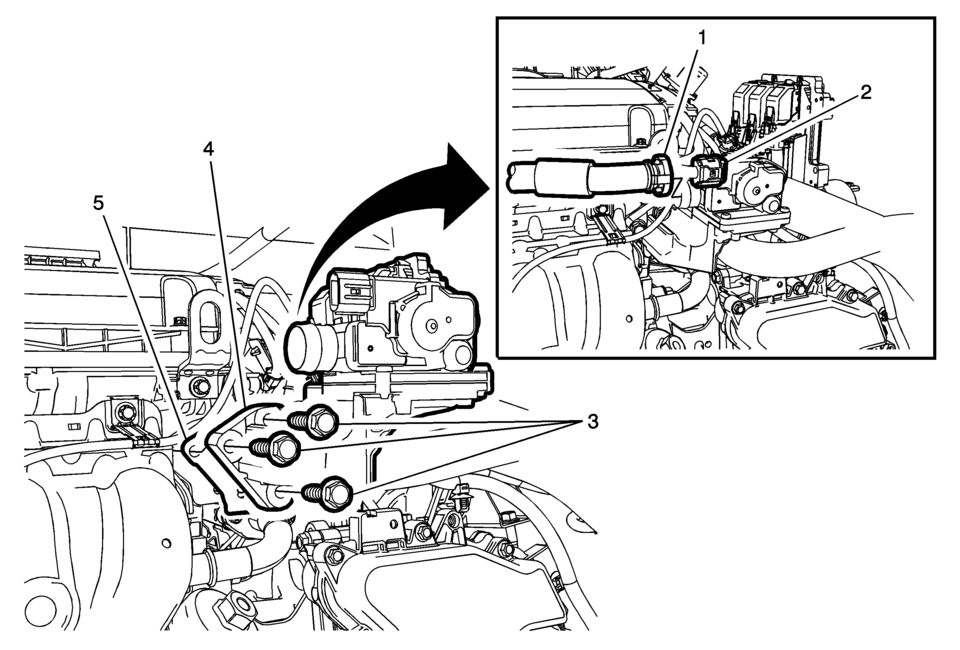

Callout

Component Name

1

Secondary Air Injection Outlet Pipe

Note:

Squeeze the retainer on opposite sides to release.

2

Secondary Air Injection Check Valve Electrical Connector

3

Secondary Air Injection Check Valve Bolts (Qty: 3).

Caution:

Refer to Fastener Caution.

Tighten


25 Y (18 lb ft)

4

Secondary Air Injection Check Valve

5

Secondary Air Injection Check Valve Gasket

Secondary Air Injection Check Valve Removal
Remove the 3 secondary air injection check valve bolts (3). Remove the secondary air injection check valve (2). Remove and DISCARD the secondary air injection check valv ...
