Chevrolet Sonic Repair Manual / Body / Restraints / Primary / Shoulder Belt Replacement - Rear (Hatchback)



Shoulder Belt Replacement - Rear

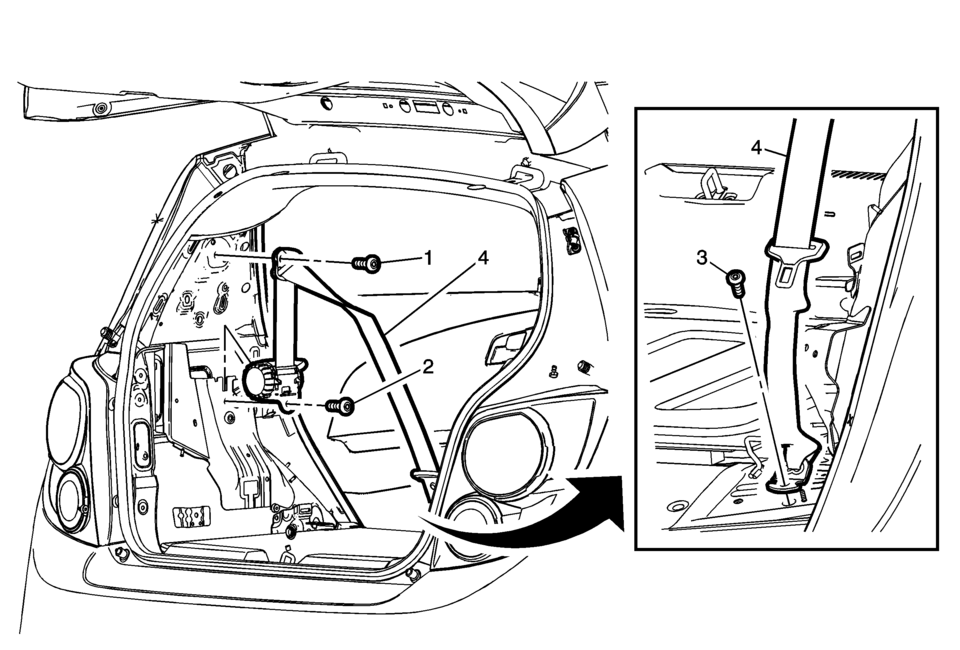

Callout

Component Name

Preliminary Procedures

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation.
  2. Remove the body lock pillar upper trim. Refer to Body Lock Pillar Upper Trim Panel Replacement.
  3. Remove the quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement.

1

Rear Seat Shoulder Belt Fastener

Caution:

Refer to Fastener Caution.

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

2

Rear Seat Shoulder Belt Retractor Fastener

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

3

Rear Seat Shoulder Belt Bracket Fastener

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

4

Rear Seat Shoulder Belt Assembly

Seat Belt System Description and Operation
Restraint System Note: If the vehicle has been in a collision, refer to Repairs and Inspections Required After a Collision. The vehicle has front and rear seat belts that are th ...

Shoulder Belt Replacement - Rear (Sedan)
Shoulder Belt Replacement - Rear Callout Component Name Preliminary Procedure Remove the rear window panel trim. Refer to Rear ...
