Shoulder Belt Replacement - Rear

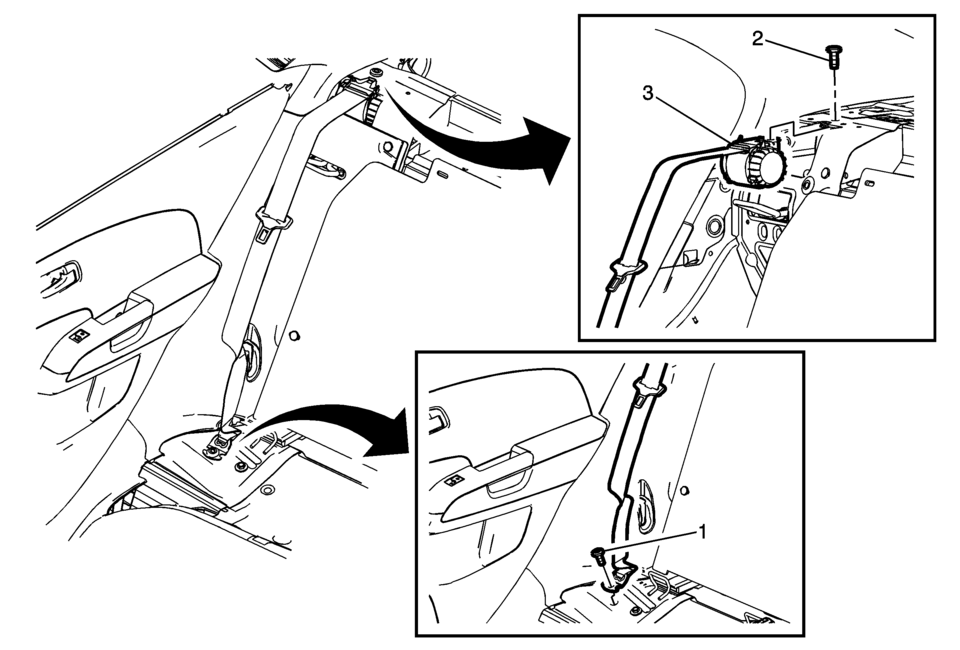

Callout

Component Name

Preliminary Procedure

Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement.

1

Rear Seat Shoulder Belt Anchor Plate Fastener

Caution:

Refer to Fastener Caution.

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

Note:

When the seat belt retractor is replaced with a new one, there is no thread in the nut welded to the retractor. This is normal as the bolt will make the thread in the welded nut when the bolt is tightened.

2

Rear Seat Shoulder Belt Retractor Fastener

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

3

Rear Seat Shoulder Belt

Shoulder Belt Replacement - Rear (Hatchback)
Shoulder Belt Replacement - Rear Callout Component Name Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cus ...
