Illustration |
Tool Number/ Description |
|---|---|
|

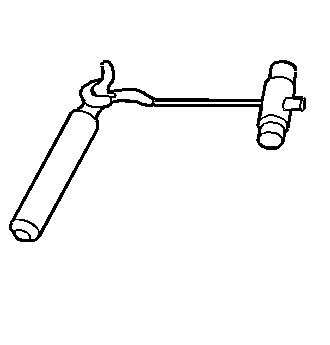

BO-24402-A J-24402-A Glass Sealant Cold Knife Remover |
![]() |

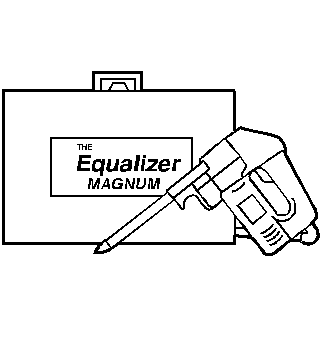

BO-39032 J-39032 Stationary Glass Removal Tool |
Remote Keyless Entry (RKE) System Operation
Stationary Window DescriptionDimensions - Body (4NB)
Point-to-point measurements are for reference only. All measurements are given
in millimeters. Use these measurements for diagnosing and estimating. Point-to-point
measurements are duplicated with tram bar pointers set at equal lengths. All die
marks, holes, slots, and fasteners are measured t ...
Drum Brake System Description and Operation
System Component Description
The drum brake system consists of the following:
Drum Brake Shoes
Applies mechanical output force, from hydraulic brake wheel cylinders,
to friction surfaces of brake drums.
Brake Drums
Uses mechanical output force applied to fric ...
Oil Pump Replacement
Removal Procedure
Remove the engine front cover. Refer to Engine Front Cover with Oil
Pump Replacement.
Remove the 8 oil pump cover bolts (1).
Remove the oil pump cover (2).
Warning: Before removing the spring, cover the spring with ...
