Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/ Description |
|---|---|
|

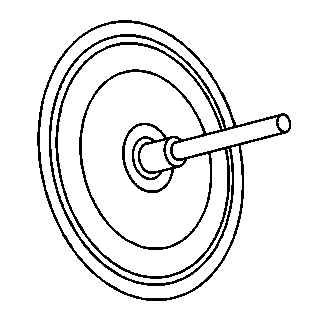

CH 41013 J 41013 Rotor Resurfacing kit |
|

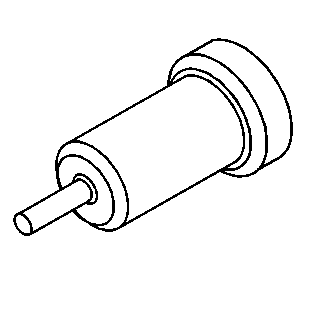

CH 42450–A J 42450–A Wheel Hub Resurfacing Kit |
Replacement Wheels Description
Replace the wheel if any of the following conditions exist:
The wheel exhibits excessive runout.
The wheel is bent.
The wheel is cracked.
The wheel is severely rusted.
The wheel is severe ...
Tire Dismounting and Mounting
Caution: Use a tire changing machine in order to dismount tires. Do
not use hand tools or tire irons alone in order to remove the tire from the
wheel. Damage to the tire beads or the wheel ri ...
Other materials:
Dimensions - Body (5HB)
Point-to-point measurements are for reference only. All measurements are given
in millimeters. Use these measurements for diagnosing and estimating. Point-to-point
measurements are duplicated with tram bar pointers set at equal lengths. All die
marks, holes, slots, and fasteners are measured t ...
Radiator Grille Opening Cover Replacement (Upper Grille Cover)
Radiator Grille Opening Cover Replacement
Callout
Component Name
Preliminary Procedure
Remove the radiator upper grille. Refer to Front Upper Grille Replacement.
1
Radiator Grille Opening Cover ( ...
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential
Ring Gear Installation (6T30)
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front
Differential Ring Gear Installation
Callout
Component Name
1
Torque Converter and Differential Housing Seal
2
Fluid Pu ...
