Chevrolet Sonic Repair Manual: Sunroof Window Replacement

Chevrolet Sonic Repair Manual / Body / Glass & Windows / General / Sunroof Window Replacement



Sunroof Window Replacement

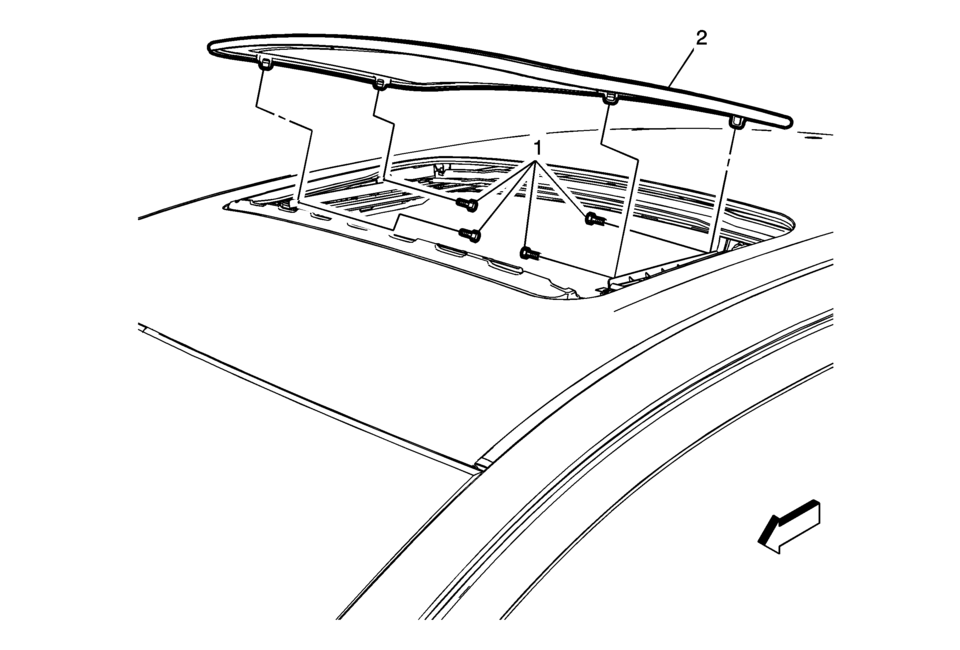

Callout

Component Name

1

Sunroof Window Bolt?€‰(Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


5?€‰Y (44?€‰lb?€‰in)

2

Sunroof Window

Procedure

  1. Turn the ignition on.
  2. Slide the sunshade to the full rearward position.
  3. Move the sunroof window to the vent position.
  4. Verify the proper operation of the sunroof. Refer to Sunroof Window Height and Opening Fit Adjustment.
Sunroof Window Height and Opening Fit Adjustment
Note: Correct adjustment cannot be achieved if the sunroof window is closed from vent position. Cycle the sunroof window from full open to closed position. ., Note: Do Not re ...

Sunroof Window Seal Replacement
Removal Procedure Remove the sunroof window panel. Refer to Sunroof Window Replacement. Remove the seal from the window panel frame by pulling the seal away at one ...
