Throttle Body Heater Inlet Hose Replacement

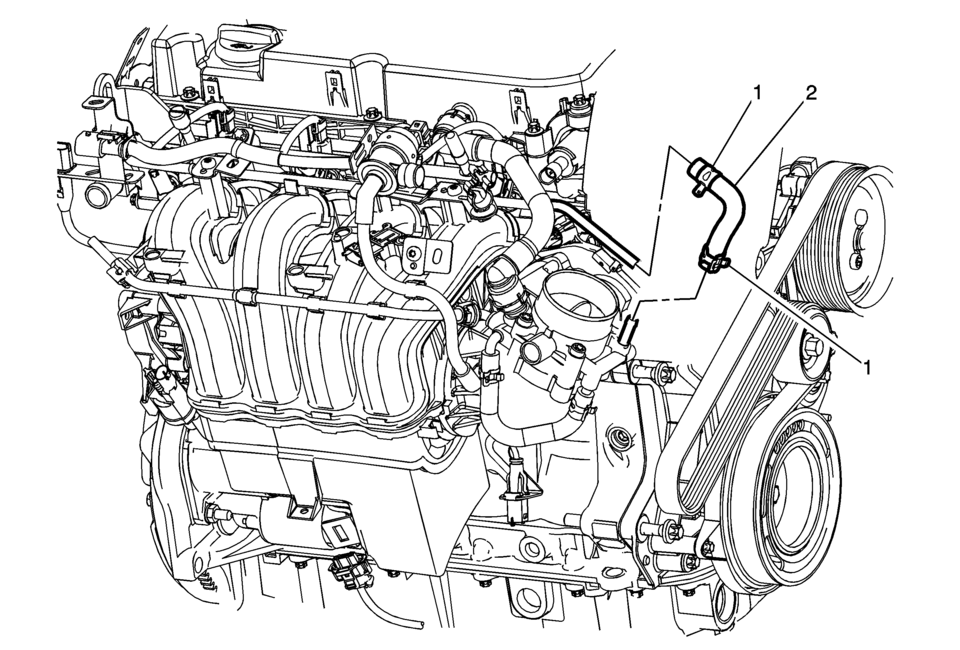

Callout

Component Name

Preliminary Procedure

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement.
  2. Drain the cooling system. Refer to Cooling System Draining and Filling.

1

Throttle Body Heater Inlet Hose Clamps

2

Throttle Body Heater Inlet Hose

Procedure

Disconnect the throttle body heater inlet hose clamps from the throttle body.
