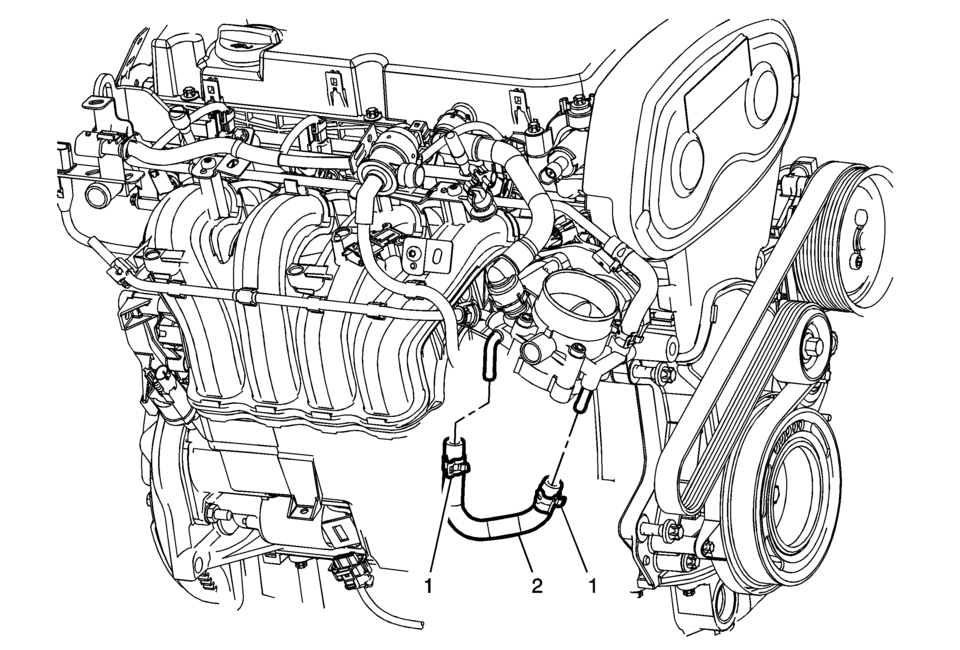

Callout |
Component Name |
---|---|
Preliminary Procedure
|
|
1 |
Throttle Body Heater Outlet Hose Clamps (Qty: 2) |
2 |
Throttle Body Heater Outlet Hose |
Engine Front Cover and Oil Pump Cleaning and Inspection
Engine Front Cover Cleaning Procedure
Clean the engine front cover sealing surface.
Warning: Wear safety glasses when using compressed air in
order to prevent eye injury.
Caution: To ensure proper engine lubrication, clean clogged
or contaminated oil g ...
Oil Pan Installation
Special Tools
EN-49980 Guidance Pins
For equivalent regional tools, refer to Special Tools.
Clean the sealing surfaces from old sealing material, dirt, oil and grease.
Note: The sealing bead should be applied close to the inner edge
of the oil pan. Take care that the oil suctio ...
Camshaft Position Actuator Adjuster Installation
Special Tools
EN-6340 Camshaft Adjuster Locking Tool
EN-6628-A Camshaft Locking Tool
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools.
Note: Note the arrows.
Turn the camshaft by the hexagon until the groove on the end of the camshafts
is ...
