Chevrolet Sonic Repair Manual: Transmission Control Lever Boot Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement. |
|
|
1 |

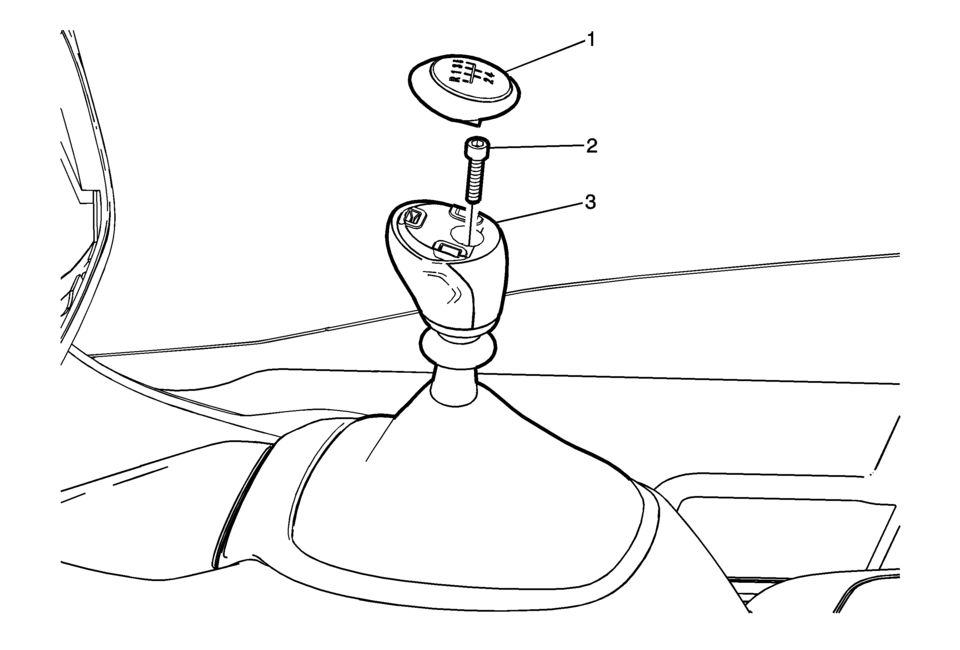

Shift Control Lever Knob Cover Procedure
Using a flat-bladed tool, remove the shift knob cover. |
|
2 |
Fastener |
|
3 |
Shift Control Lever Knob and Boot Assembly |
Control Solenoid Valve and Transmission Control Module Assembly Replacement
Removal Procedure
Remove the transmission control valve body cover.
Refer to Control Valve Body Cover Replacement.
Disconnect the output speed sensor electrical con ...
Transmission Control Replacement
Removal Procedure
Remove the floor console. Refer to
Front Floor Console Replacement.
Lift both cable adjustment retainers (1), one for
each cable, to release the s ...
