Engine Oil Cooler Outlet Pipe Replacement

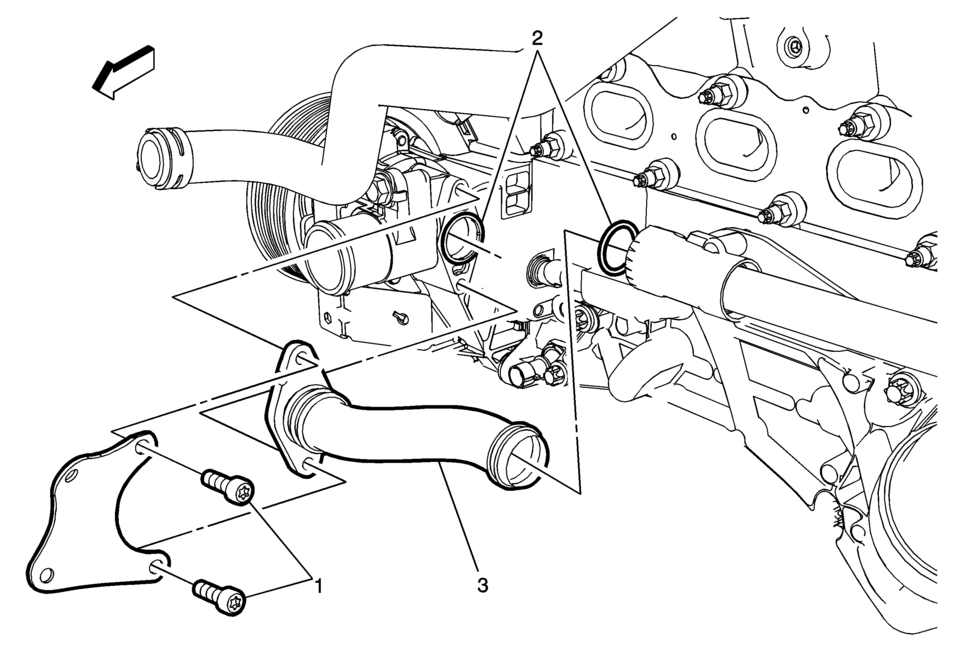

Callout

Component Name

Preliminary Procedure

Remove the engine oil cooler pipe. Refer to Engine Oil Cooler Pipe Replacement.

1

Engine Oil Cooler Outlet Pipe Bolt (Qty: 2)

Caution:

Refer to Fastener Caution.

Tighten


8 Y (71 lb in)

2

Seals

Note:

Replace with NEW seals.

3

Engine Oil Cooler Outlet Pipe

Engine Oil Cooler Outlet Hose Replacement (LUV)
Engine Oil Cooler Outlet Hose Replacement Callout Component Name Preliminary Procedure Drain the cooling system. Refer to Cooling S ...

Engine Oil Cooler Pipe Replacement (LUW)
Engine Oil Cooler Pipe Replacement Callout Component Name Preliminary Procedures Drain the cooling system. Refer to Cooling System ...
