Chevrolet Sonic Repair Manual: Turbocharger Cleaning and Inspection
- Cleaning Procedure
-
- Clean all sealing surfaces.
- Clean all threads if necessary.
- Inspection Procedure
-

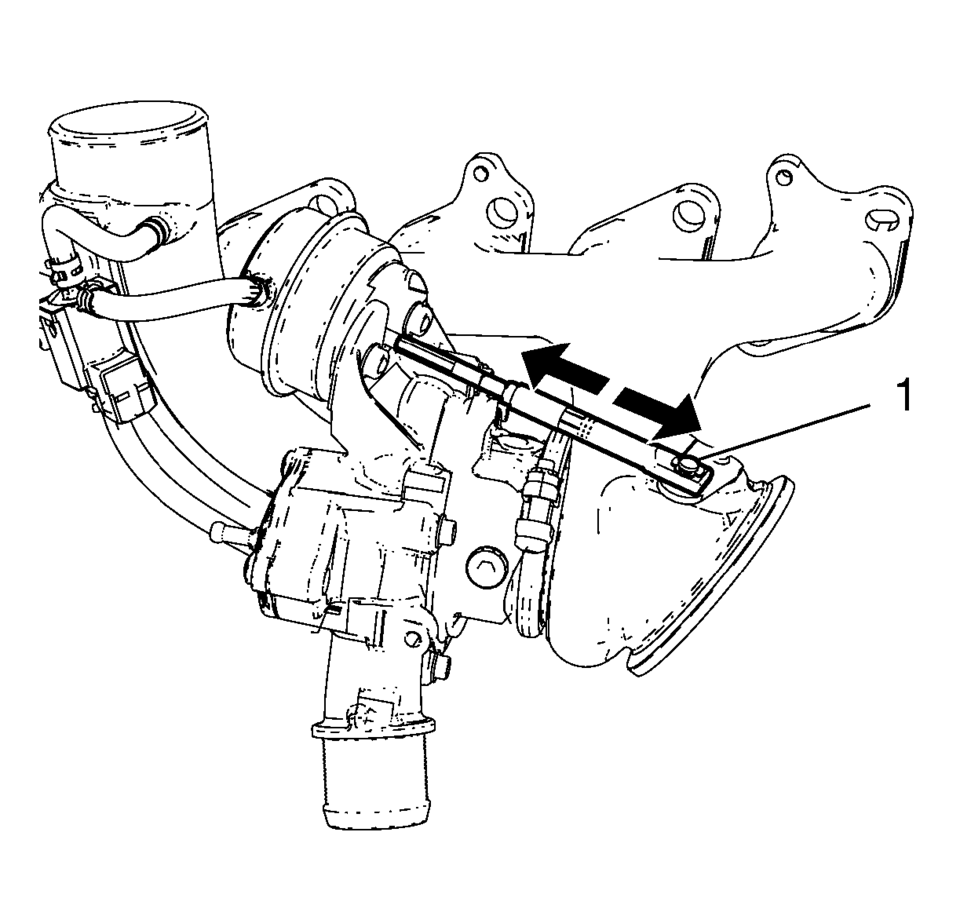

- Inspect the wastegate regulator mechanism (1) for functionality.
- Inspect the turbine blades for damage or foreign material.
- Inspect the turbocharger wastegate regulator vacuum hoses for damage.
- Inspect the exhaust manifold and the turbocharger for cracks or other damage.
- Inspect the exhaust manifold mating surface for flatness.
Turbocharger Assemble
Caution: Refer to Fastener Caution.
Install the NEW quick fitting connector (2) and a NEW seal ring (1) to the
turbocharger and tighten to 20 Y (15 lbR ...
Turbocharger Coolant Feed Pipe Replacement (LUV)
Turbocharger Coolant Feed Pipe Replacement
Callout
Component Name
Preliminary Procedure
Remove the turbocharger. Refer to Turbo ...
