Chevrolet Sonic Repair Manual: Turn Signal Switch Bracket Replacement

Chevrolet Sonic Repair Manual / Chassis / Steering / Steering Wheel and Column / Turn Signal Switch Bracket Replacement



Turn Signal Switch Bracket Replacement

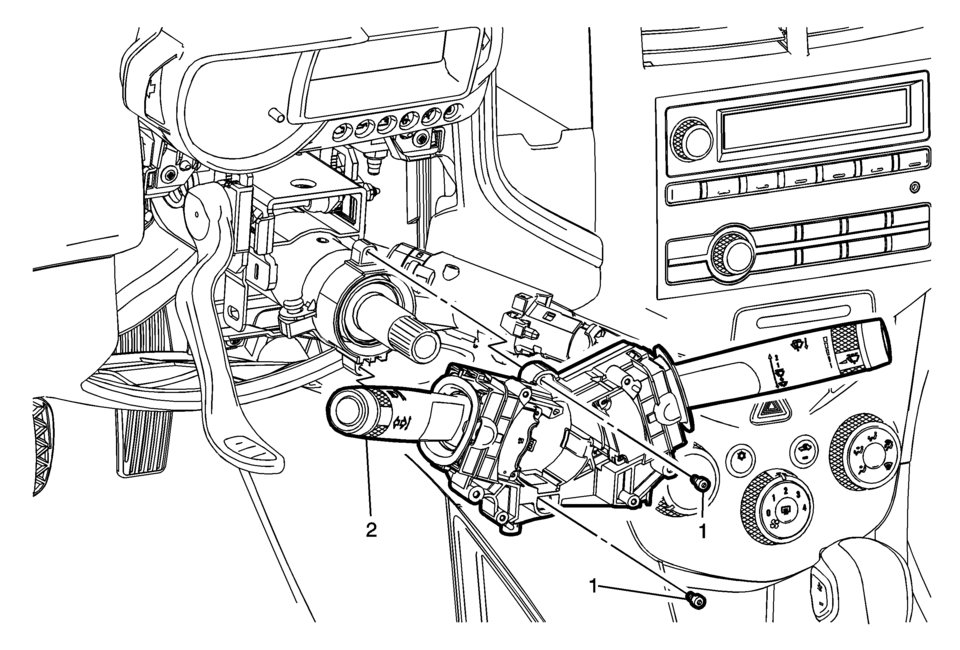

Callout

Component Name

Preliminary Procedure

Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Airbag Coil Replacement.

1

Turn Signal Switch Bracket Fastener (Qty: 2)

Caution:

Refer to Fastener Caution.

2

Turn Signal Switch Bracket

Procedure

  1. Disconnect any electrical connectors as necessary.
  2. Release the locking tab in order to disconnect the turn signal switch bracket from the steering column.
  3. Transfer components as necessary.
