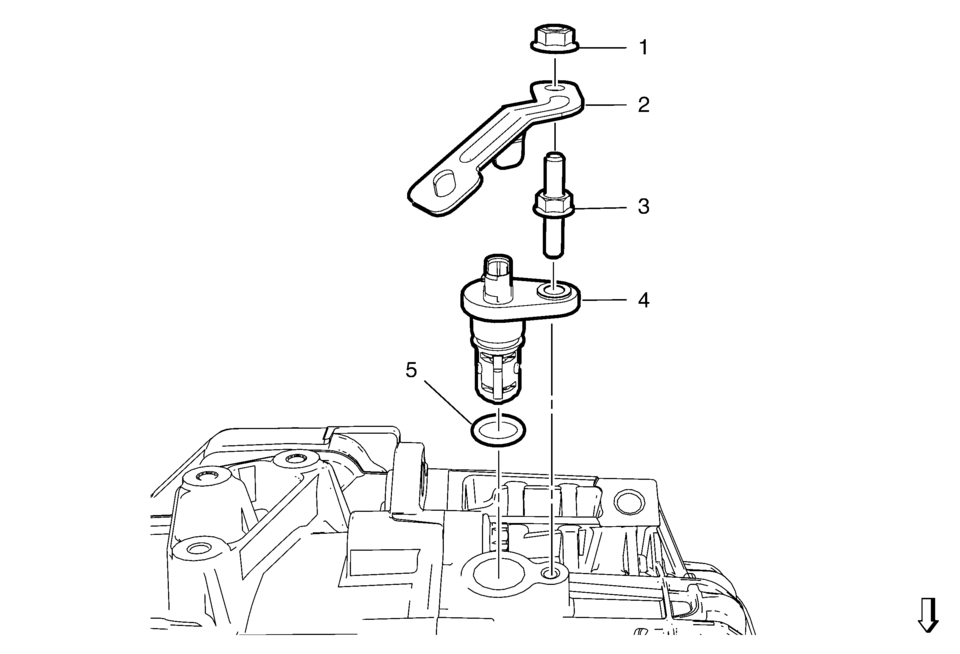

Callout |
Component Name |
---|---|
1 |
Engine Wiring Harness Bracket Nut Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
2 |
Engine Wiring Harness Bracket |
3 |
Vehicle Speed Sensor Bolt Tighten
9 Y (80 lb in) |
4 |
Vehicle Speed Sensor Procedure
Disconnect wiring harness connector. |
5 |
Vehicle Speed Sensor O-Ring Procedure
DISCARD the seal and install NEW seal. |
Brake Pedal Assembly Replacement
Removal Procedure
Remove the battery tray. Refer to Battery Tray Replacement.
Remove the power vacuum brake booster bolts (1).
Remove the brake pedal assembly upper nuts (1)
Remove the brake pedal assembly lower nuts (1)
Remo ...
Crankshaft and Bearing Cleaning and Inspection
Special Tools
EN-45059 Torque Angle Sensor Kit
GE-571-B Dial Gauge
For equivalent regional tools, refer to Special Tools.
Crankshaft End Play, Check
Note: Crankshaft attached with crankshaft bearing caps.
Install the GE-571-B gauge (1).
...
Fuel Tank Heat Shield Replacement
Removal Procedure
Support the fuel tank with a suitable jack.
Remove the fuel tank strap fasteners (1) and lower the fuel tank straps (2).
Remove the fuel tank heat shield fasteners (1) and remove the fuel tank
heat shield (2).
...
