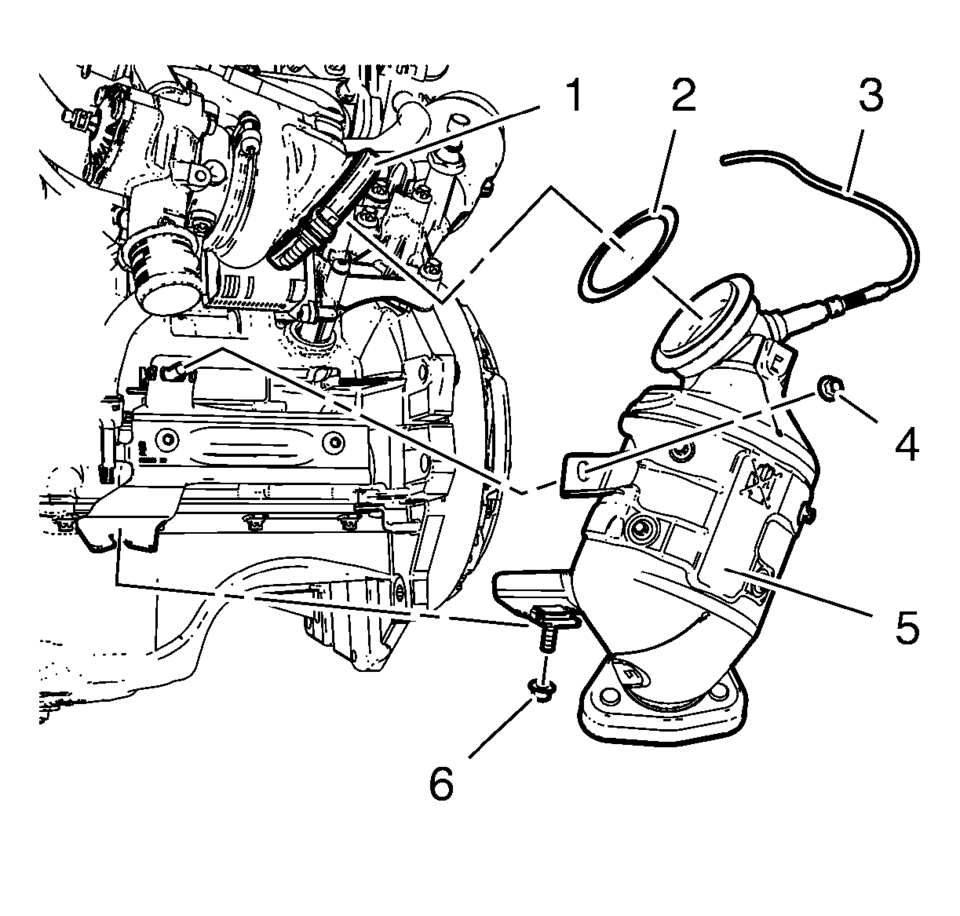

    Disconnect the heated oxygen sensor wiring harness (3) from retainer clip.
  1. Disconnect the heated oxygen sensor wiring harness (3) from retainer clip.
  2. Remove the 2 catalytic converter to catalytic converter bracket nuts (4) and (6).
  3. Loosen the three way warm up catalytic converter V-clamp (1).
  4. Remove the three way warm up catalytic converter (5) and the catalytic converter seal (2).
Warm Up Three-Way Catalytic Converter Installation
Install the warm up three way catalytic converter (5) to the brackets and the turbocharger. Use a NEW warm up three way catalytic converter seal (2). Note: Never re-us ...

Warm Up Three-Way Catalytic Converter Replacement (LUV,LUW)
Warm Up Three-Way Catalytic Converter Replacement Callout Component Name Warning: Refer to Exhaust Service Warning. ...
