Windshield Side Garnish Molding Replacement

Callout

Component Name

Preliminary Procedures

Disable the SIR system, if equipped. Refer to SIR Disabling and Enabling.

1

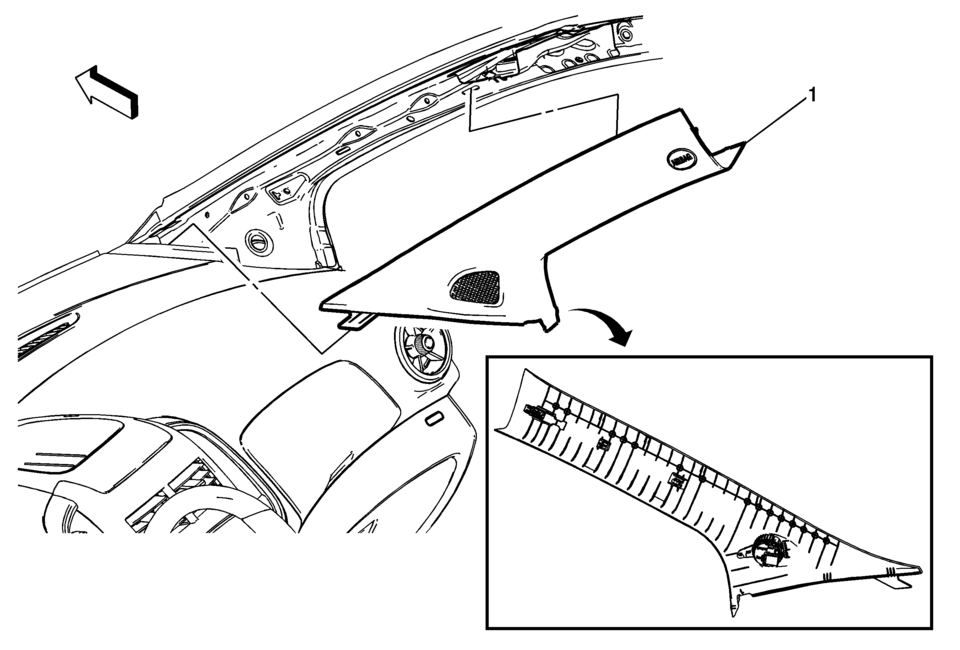

Windshield Side Garnish Molding Assembly

Procedure

  1. Tabs must be installed prior to retainers.
  2. Tabs to be fully seated in the instrument panel (I/P) trim panel retainer and valance panel.
  3. Disconnect the electrical connectors.
  4. Ensure the tether is reattached when installed.
Roof Rail Rear Assist Handle Replacement
