Chevrolet Sonic Repair Manual: Instrument Panel Compartment Door Latch Replacement
|

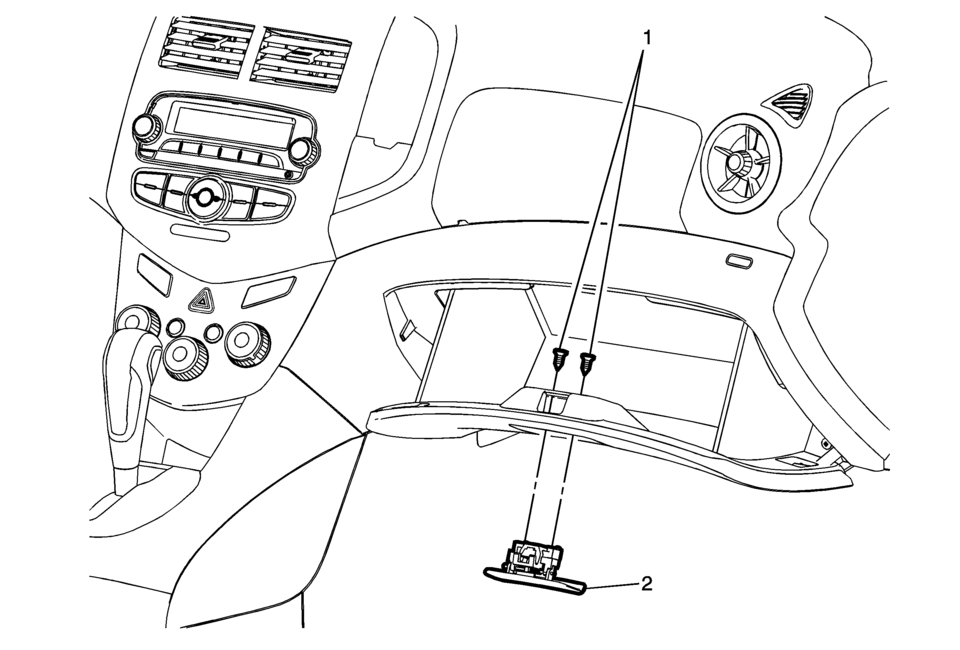

Callout |
Component Name |
|---|---|
|
1 |
Instrument Panel Compartment Door Latch Fasteners (Qty:?€‰2) Caution: Refer to Fastener Caution. |
|
2 |
Instrument Panel Compartment Door Latch Assembly |
Fuel Tank Filler Door Latch Housing Replacement
Fuel Tank Filler Door Latch Housing Replacement
Callout
Component Name
Preliminary Procedures
Remove the rear wheelhouse panel line ...
Instrument Panel Upper Compartment Door Latch Replacement
Instrument Panel Upper Compartment Door Latch Replacement
Callout
Component Name
1
Instrument Panel Upper Compartment Do ...
