Chevrolet Sonic Repair Manual: Air Inlet Grille Panel Replacement

Chevrolet Sonic Repair Manual / Body / Wipers, Washers / Air Inlet Grille Panel Replacement



Air Inlet Grille Panel Replacement

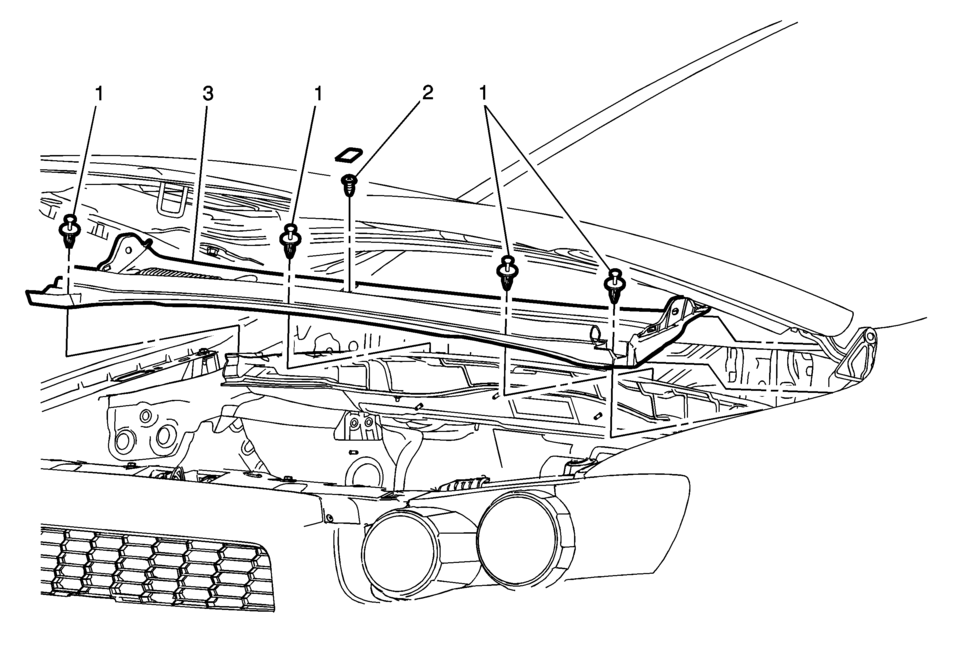

Callout

Component Name

Preliminary Procedure

  1. Remove both wiper arm assemblies. Refer to Windshield Wiper Arm Replacement.
  2. Remove both outer hood rear seals. Refer to Hood Rear Seal Replacement.

1

Air Inlet Grille Panel Retainer (Qty:?€‰4)

Procedure

Release and remove the retainers from the air inlet grille panel.

2

Air Inlet Panel Screw

Caution:

Refer to Fastener Caution.

Procedure

  1. Remove the screw cover from the air inlet grille panel.
  2. Remove the air inlet grille panel screw.

    Tighten


    2.5?€‰Y (22?€‰lb?€‰in)

3

Air Inlet Grille Panel

Procedure

  1. Lift the front edge of the grille panel off the front edge of the dash upper extension panel opening cover.
  2. Slide the grille panel forward from both hood hinges.
  3. Remove the grille panel from the vehicle.
  4. Remove the hood rear weather-strip. Refer to Hood Rear Weatherstrip Replacement.
