Chevrolet Sonic Repair Manual: Automatic Transmission Control Indicator Opening Cover Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front floor console cover. Refer to Front Floor Console Cover Replacement. |
|
|
1 |

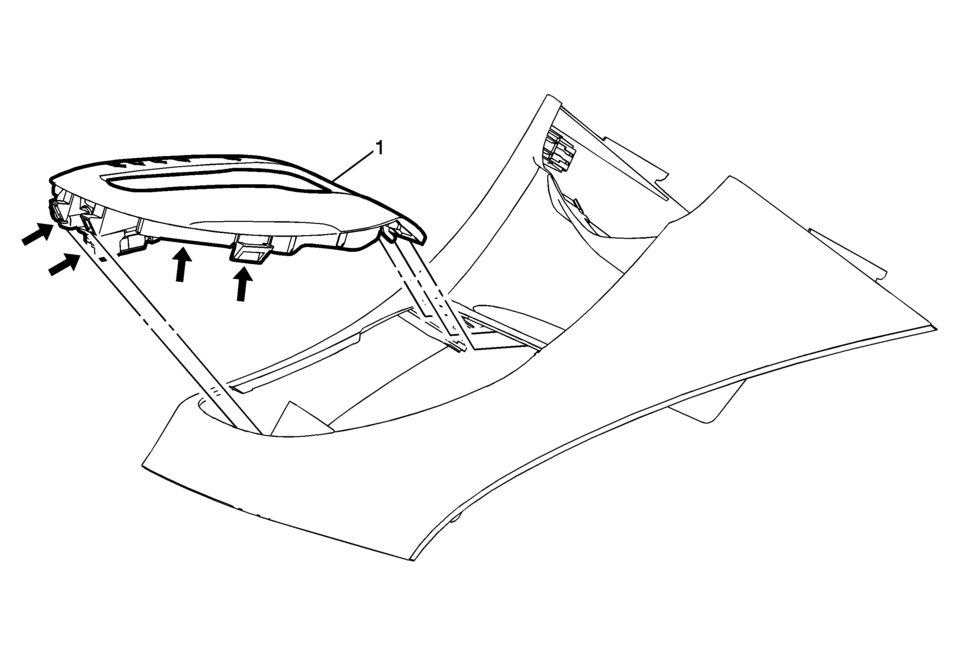

Automatic Transmission Control Indicator Opening Cover Assembly Procedure
Release the retainer clips securing the transmission control indicator to the front floor console cover. |
