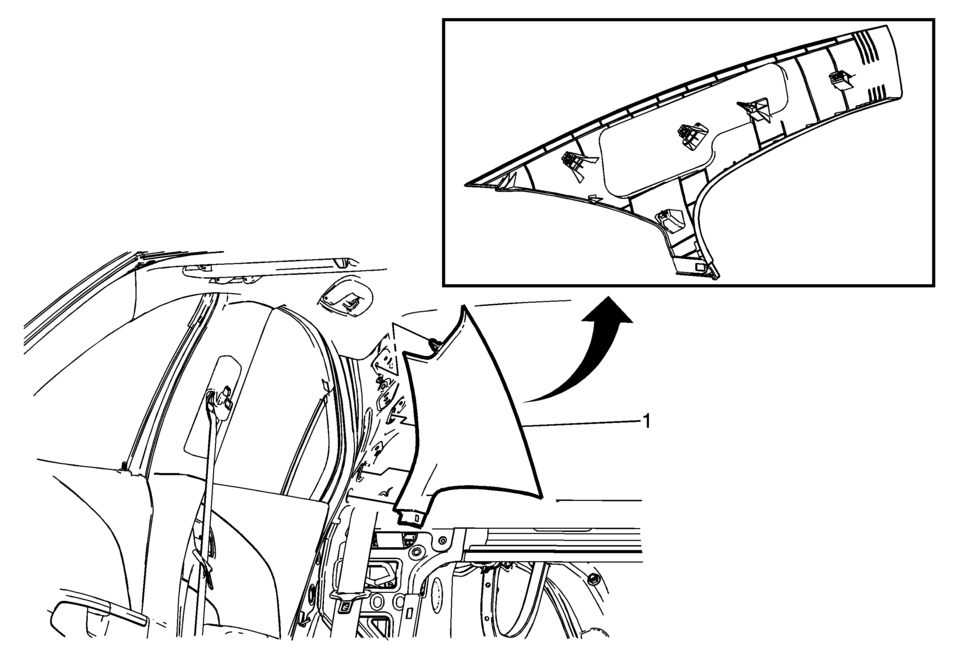

Body Lock Pillar Upper Trim Panel Replacement

Callout

Component Name

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling.
  2. Remove the body side trim panel. Refer to Body Side Trim Panel Replacement.

1

Body Lock Pillar Upper Trim Panel Assembly

Procedure

Pull outward from the top front to disengage clips.
