Body Lock Pillar Upper Trim Panel Replacement

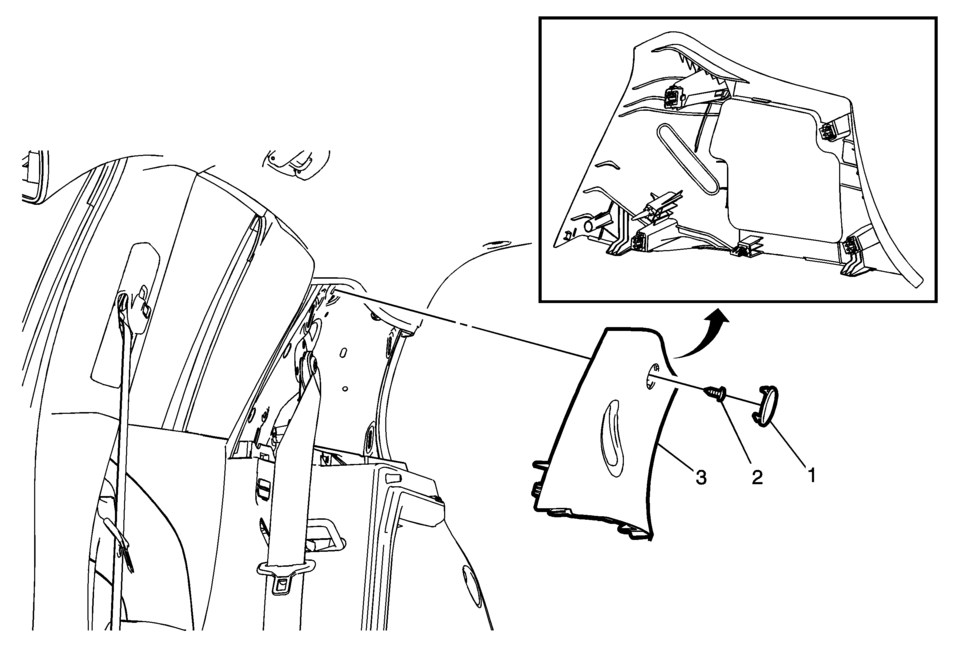

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling.
1	Inflatable Restraint Airbag Cover
2	Body Lock Pillar Upper Trim Panel Fastener Caution: Refer to Fastener Caution.
3	Body Lock Pillar Upper Trim Panel Assembly Procedure Grasp the molding and pull outward to disengage the integral retainers. Disconnect the electrical connector, if equipped.
