Chevrolet Sonic Repair Manual: Camshaft Position Actuator Solenoid Valve Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Camshaft / Camshaft Position Actuator Solenoid Valve Installation



    Caution:

    The camshaft position actuator solenoid valves must be kept parallel to the engine front cover during removal and installation. The camshaft position actuator solenoid valves can be damaged if they become wedged or stuck during this process.

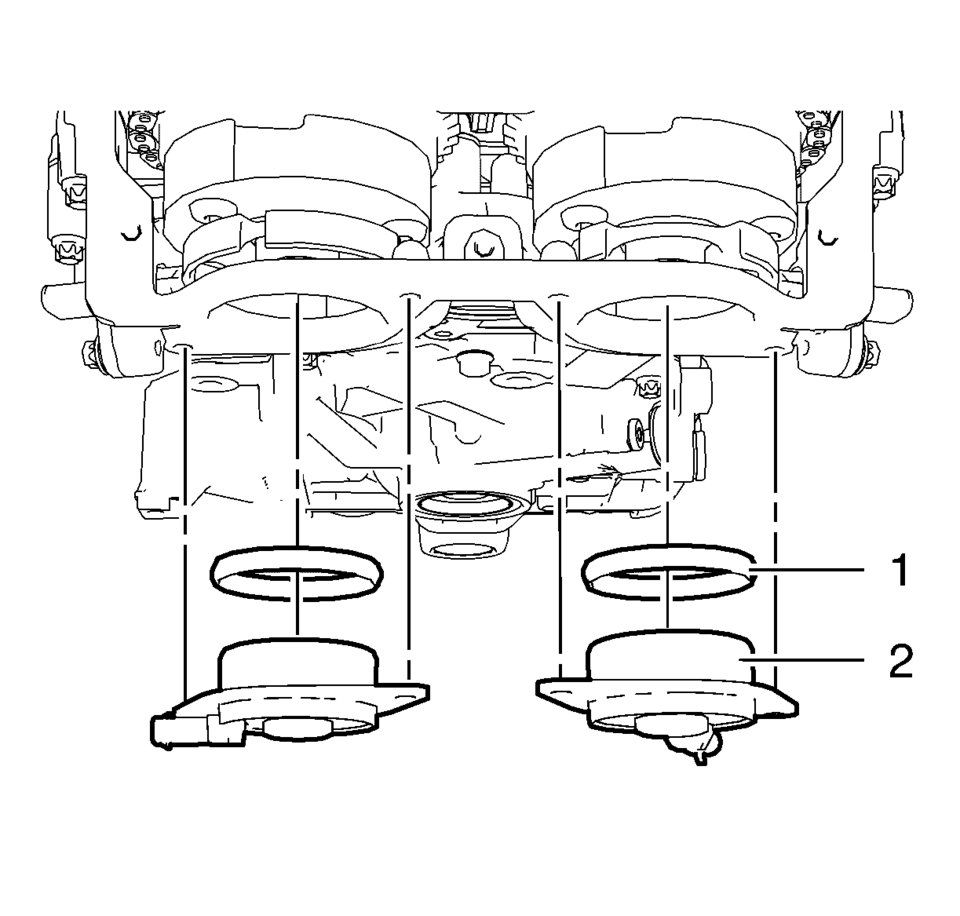

  1. Install the 2 camshaft position actuator solenoid valves (2) and the 2 seal rings (1) by carefully and evenly pressing.

  2. Caution:

    Refer to Fastener Caution

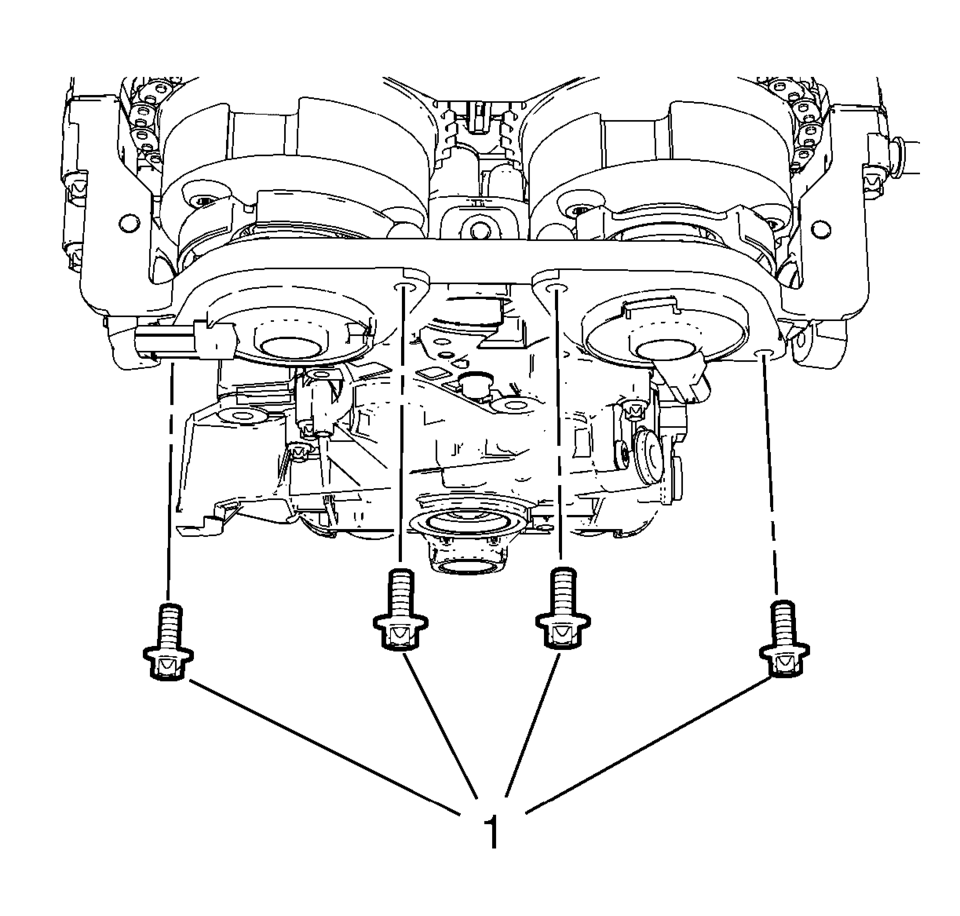

  3. Install the 4 camshaft position actuator solenoid valve bolts (1) and tighten to  8 Y (71 lb in)

    .

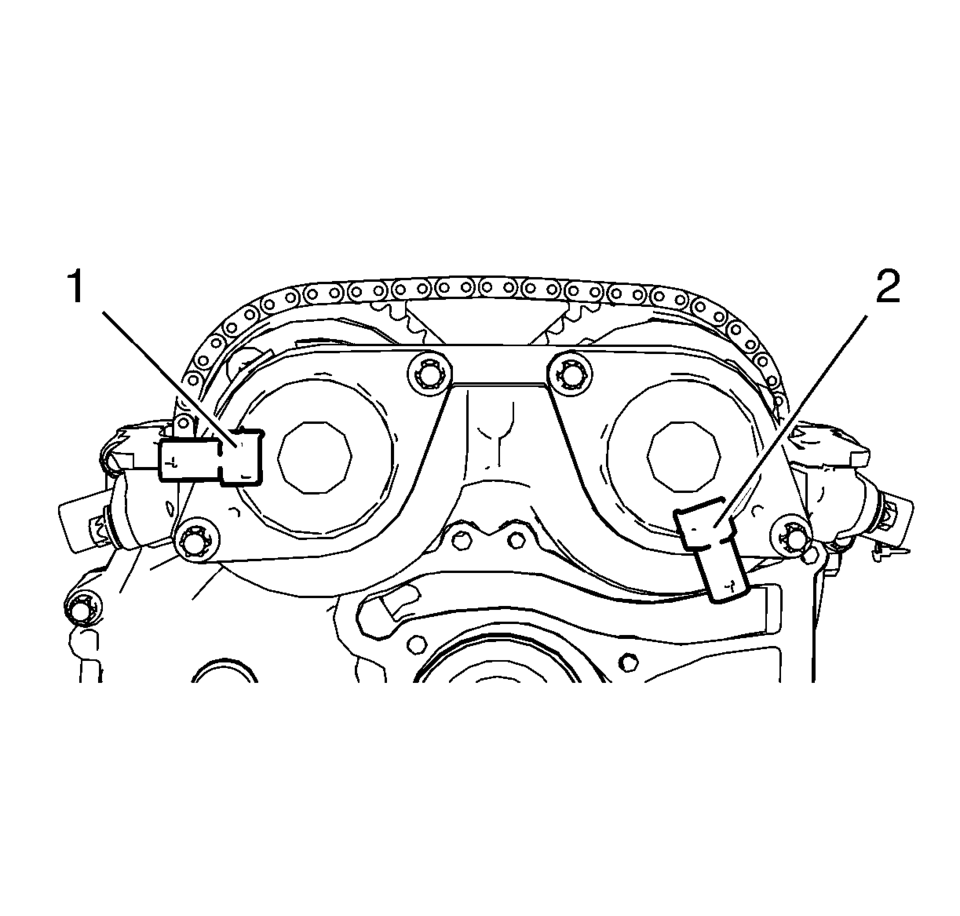

  4. The 2 camshaft position actuator solenoid valves should be installed in the position as shown (1) and (2).
Camshaft Position Actuator Adjuster Removal
Special Tools EN-6340 Camshaft Adjuster Locking Tool EN-6628-A Camshaft Locking Tool For equivalent regional tools, refer to Special Tools. Note: The right half of the EN-6340 ...

Camshaft Position Actuator Solenoid Valve Removal
Remove the camshaft position actuator solenoid valve bolts (1). Remove the camshaft position actuator solenoid valves (2). Remove the camshaft position actuator solenoid val ...
