Chevrolet Sonic Repair Manual: Camshaft Sprocket Removal


    Loosen the intake camshaft sprocket bolt (1) while holding the hexagon of

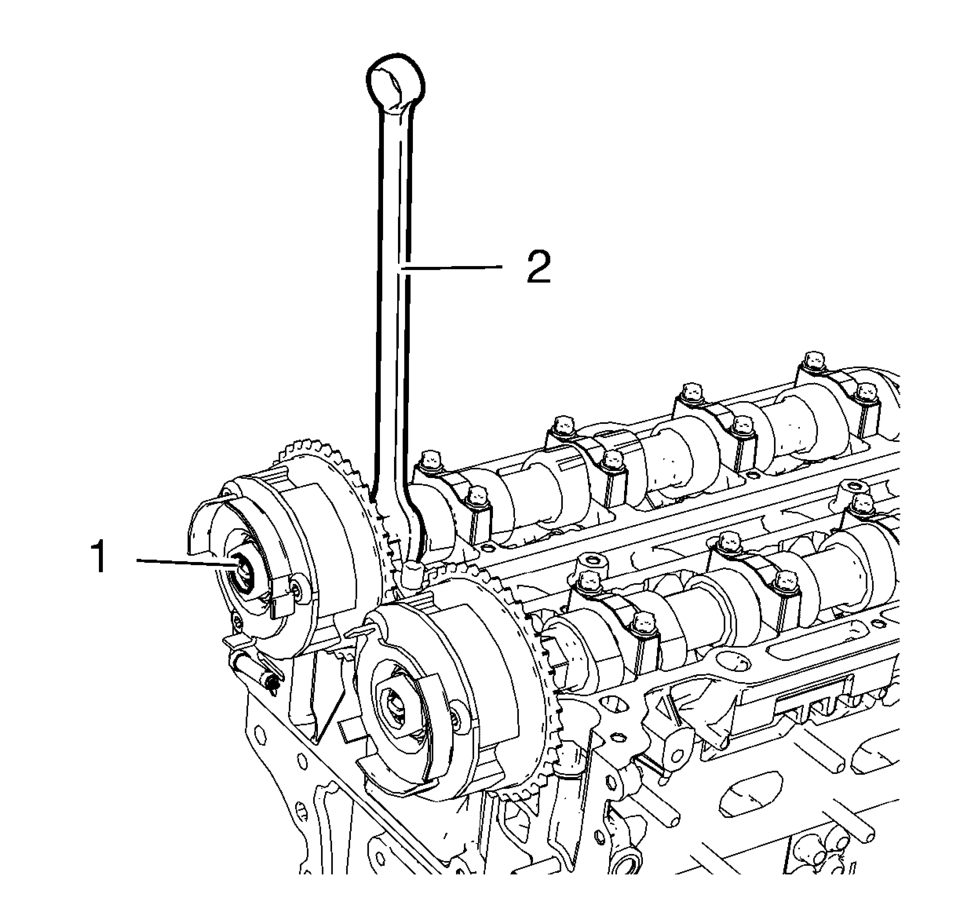

  1. Loosen the intake camshaft sprocket bolt (1) while holding the hexagon of intake camshaft (2) with a wrench.

  2. Remove the intake camshaft sprocket bolt (1) and the intake camshaft position exciter wheel (2).
  3. Remove the intake camshaft sprocket (3).
  4. Loosen the exhaust camshaft sprocket bolt while holding the hexagon of exhaust camshaft with a wrench.
  5. Remove the exhaust camshaft sprocket bolt and the exhaust camshaft position exciter wheel.
  6. Remove the exhaust camshaft sprocket.
Camshaft Sprocket Installation
Install the intake camshaft sprocket (3). Install the intake camshaft position sensor exciter wheel (2) and the intake camshaft sprocket bolt (1), but do not tighten ye ...

Camshaft Sprocket Replacement
Special Tools EN-6340 Camshaft Adjuster Locking Tool EN-6628–A Camshaft Locking Tool EN-45059 Angle Meter For equivalent regional tools, refer to Special Tools. Removal Procedure ...
