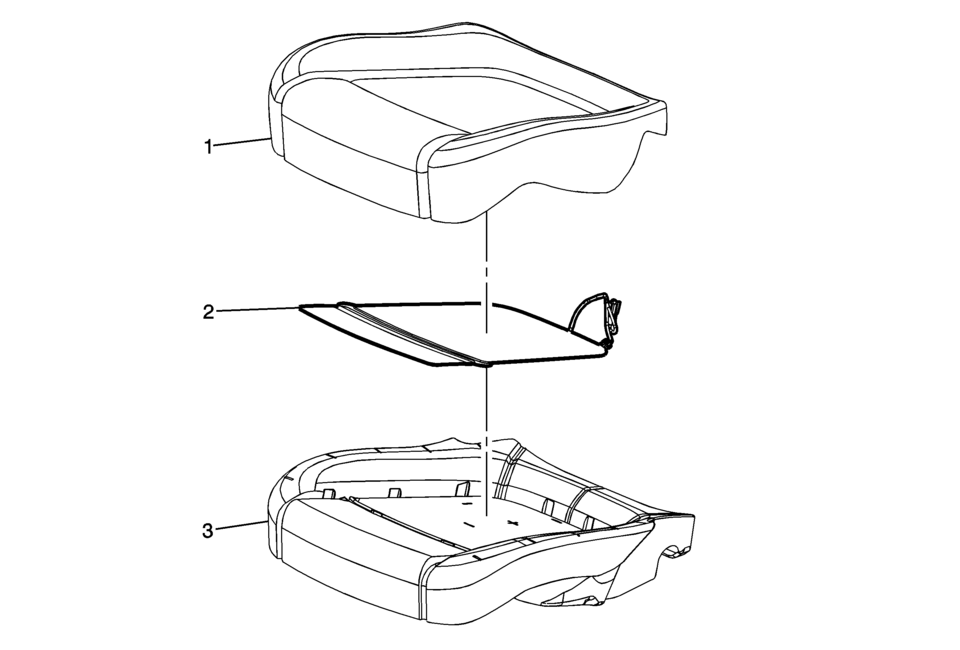

Callout |
Component Name |
---|---|
Warning: Refer to SIR Warning.
|
|
1 |
Front Seat Cushion Cover Procedure
Separate the seat cushion from the seat cushion pad by pulling the cover away from the pad. |
2 |
Front Seat Cushion Heater Procedure
The heater is retained to the pad with adhesive, carefully peel the heater from the seat cushion pad to remove. |
3 |
Front Seat Cushion Pad Note: The seat belt presence sensor and heat mat, if equipped are integral parts of the seat cushion pad. |
Front Suspension Description and Operation
The front suspension has 2 primary purposes:
Isolate the driver from irregularities in the road surface.
Define the ride and handling characteristics of the vehicle.
The front suspension absorbs the impact of the tires travelling over irregular
road surfaces and dissipates this energy t ...
Tire and Wheel Balancing (Collet Cone Selection)
Important: Never use the hub cap bore to center the wheel onto
the balancer. The pilot bore (on the hub side of the wheel) is machined
to be concentric to very tight non - standard tolerances. The bottom cap
bore is not machined to this same degree of precision.
Accurate mac ...
Intake Manifold Disassemble (1.6L LDE)
Remove the intake manifold absolute pressure sensor bolt.
Remove the manifold absolute pressure sensor (1) from the intake manifold (2).
Remove the intake manifold mount (2) from the intake manifold (1).
Remove the throttle body seal (1). ...
