Nissan Armada 2025-2026 Owner's Manual: Engine compartment
The engine compartment of the Nissan Armada houses the powerful VR35DDTT engine and essential service components. Regular inspection of these elements helps maintain optimal performance and long-term reliability.

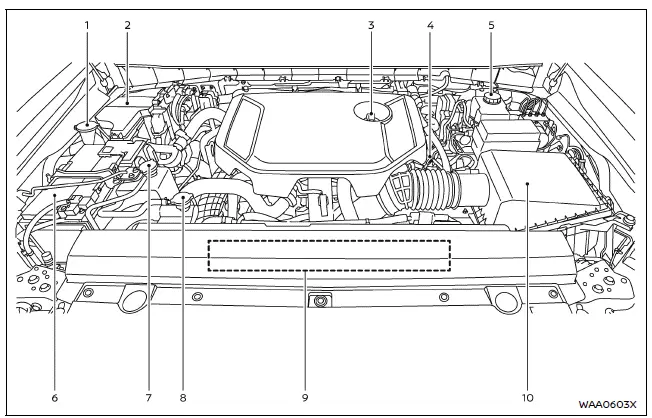

- Window washer fluid reservoir
- Fuse/fusible link holder
- Engine oil filler cap
- Engine oil dipstick
- Brake fluid reservoir
- Battery
- Engine coolant reservoir
- Radiator filler cap
- Drive belts
- Air cleaner
VR35DDTT ENGINE
NOTE:
Your Nissan Armada may not be equipped with an engine cover depending on configuration.
