WARNING
The following section outlines important limitations of the Moving Object Detection (MOD) system in the Nissan Armada. Ignoring these limitations or relying on the system beyond its capabilities may significantly increase the risk of accidents, serious injury, or even fatal outcomes. The Nissan Armada MOD system is designed as an assistance feature and should never replace attentive driving.
NOTE:
The MOD indicator icon in your Nissan Armada will change from green to orange under certain conditions.
If the orange indicator remains illuminated, it is strongly recommended to have your Nissan Armada inspected by an authorized Nissan dealer to ensure proper system operation.
System maintenance
CAUTION

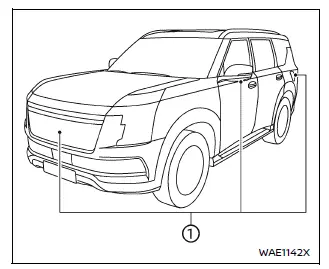

If dirt, rain, or snow accumulates on any of the cameras in your Nissan Armada, the MOD system may not function correctly. Carefully clean the lens using a soft cloth with a mild diluted cleaning solution, followed by a dry wipe to maintain optimal visibility and performance.
MOD system operation
