Nissan Armada 2025-2026 Owner's Manual: Ventilators

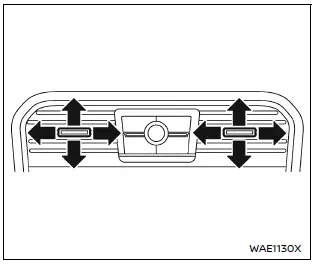

Center ventilators
The Nissan Armada center ventilators can be opened, closed, and adjusted by moving the central control knob, allowing precise airflow direction and enhanced cabin comfort.

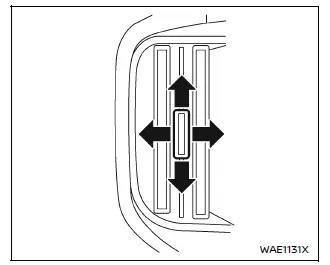

Side ventilators
Side ventilators in the Nissan Armada provide additional airflow customization. Adjust them using the center knob to direct air exactly where needed.

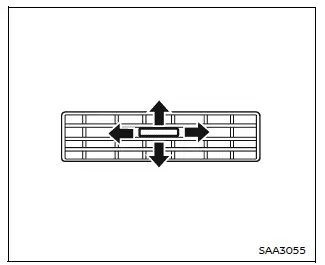

Rear ventilators
Rear ventilators ensure passenger comfort in the back seats of the Nissan Armada. Airflow can be controlled in the same intuitive way using the central adjustment mechanism.
