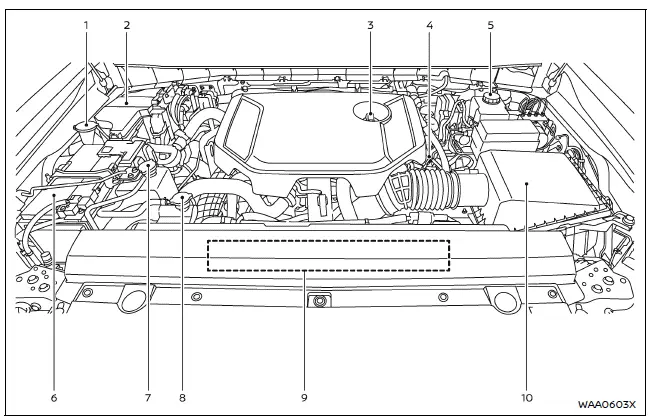

Nissan Armada 2025-2026 Owner's Manual: Engine compartment check locations
- Window washer fluid reservoir
- Fuse/fusible link holder
- Engine oil filler cap
- Engine oil dipstick
- Brake fluid reservoir
- Battery
- Engine coolant reservoir
- Radiator filler cap
- Drive belts
- Air cleaner
VR35DDTT engine
NOTE:
Depending on the configuration of your Nissan Armada, an engine cover may or may not be installed. This does not affect functionality but may slightly change the appearance of the engine bay.
Maintenance precautions
When performing inspection or maintenance tasks on your Nissan Armada, always
take appropriate precautions to prevent injury and avoid damaging the vehicle.
The following safety guidelines should a ...
