Chevrolet Sonic Repair Manual: Ignition and Start Switch Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Ignition System / Ignition and Start Switch Replacement

Ignition and Start Switch Replacement

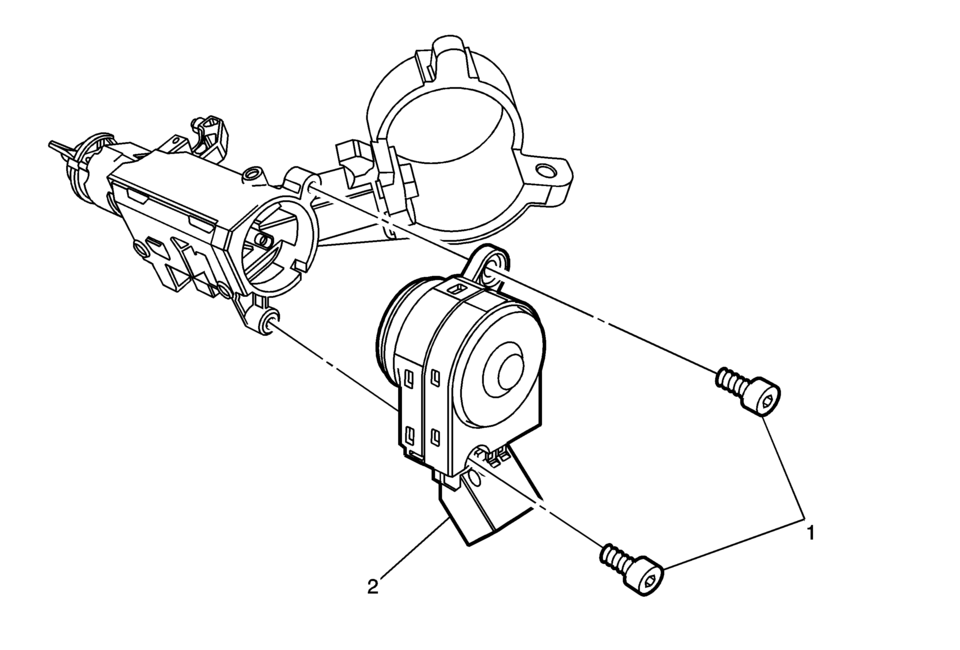

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection. Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement.
1	Ignition and Start Switch Bolt (Qty: 2) Caution: Refer to Fastener Caution.
2	Ignition and Start Switch

Ignition and Start Switch Housing Replacement

Ignition and Start Switch Housing Replacement Callout Component Name Preliminary Procedures Remove the theft deterrent module. Refe ...

Lock Cylinder Coding - Ignition

The ignition lock cylinder uses 8 key cut positions, 1?E. The ignition cylinder tumblers (3) are located on alternate sides of the cylinder (5). They are not snap-in and are ...
