Chevrolet Sonic Repair Manual: Rear Window Wiper Blade Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure

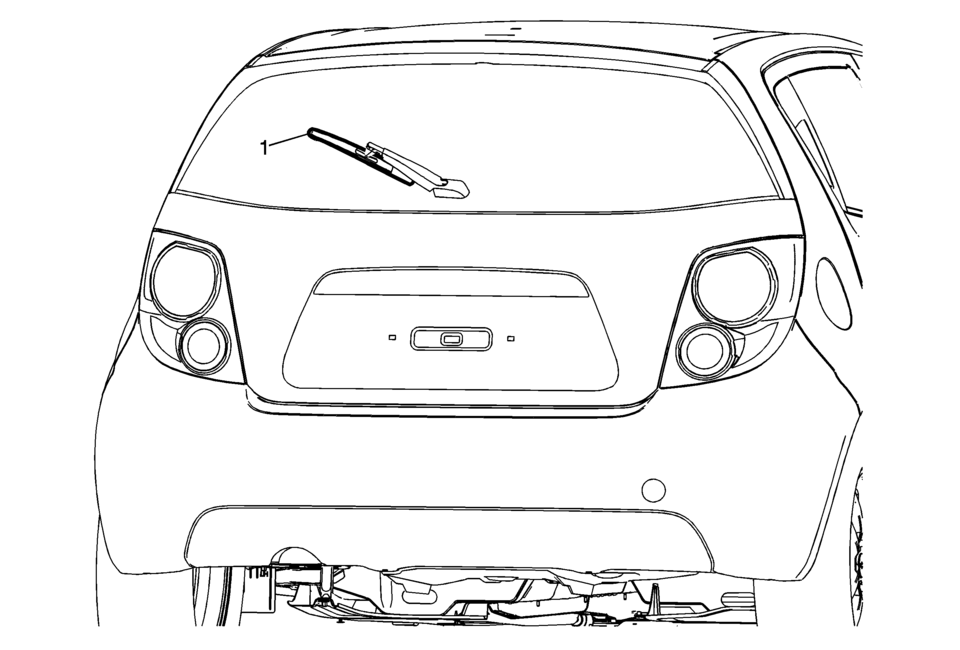

Lift the rear window wiper arm off the rear window and release the rear window wiper blade from the rear window wiper arm. |
|
|
1 |
Rear Window Wiper Blade |
