Callout |
Component Name |
---|---|
Preliminary Procedure
|
|

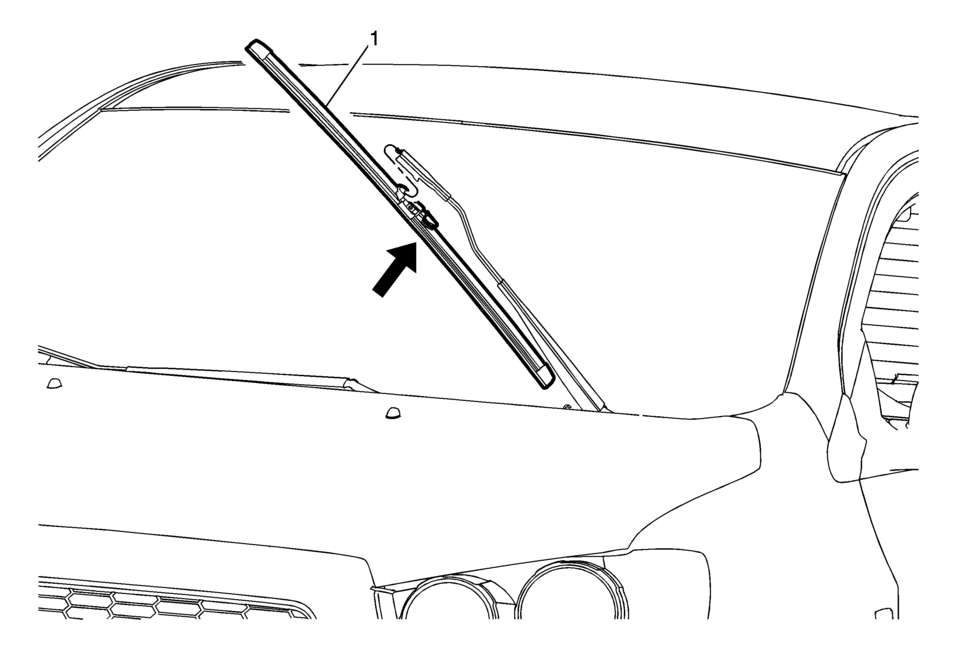

1 |
Windshield Wiper Blade Assembly |
Brake Pedal Assembly Replacement
Removal Procedure
Remove the battery tray. Refer to Battery Tray Replacement.
Remove the power vacuum brake booster bolts (1).
Remove the brake pedal assembly upper nuts (1)
Remove the brake pedal assembly lower nuts (1)
Remo ...
Cooling System Draining and Filling
Draining Procedure
Warning: To avoid being burned, do not remove the radiator
cap or surge tank cap while the engine is hot. The cooling system will
release scalding fluid and steam under pressure if radiator cap or surge
tank cap is removed while the engine and radi ...
Camshaft Timing Chain Installation
Special Tools
EN-952 Fixing Pin
EN-953-A Fixing Tool
EN-955-10 Fixing Pin from EN-955 Kit
For equivalent regional tools, refer to Special Tools.
The engine should be adjusted to TDC.
The crankshaft should be locked with EN-952 fixing pin.
The camshaft should be locked with EN-9 ...
