Callout |
Component Name |
---|---|
Preliminary Procedures
|
|
1 |

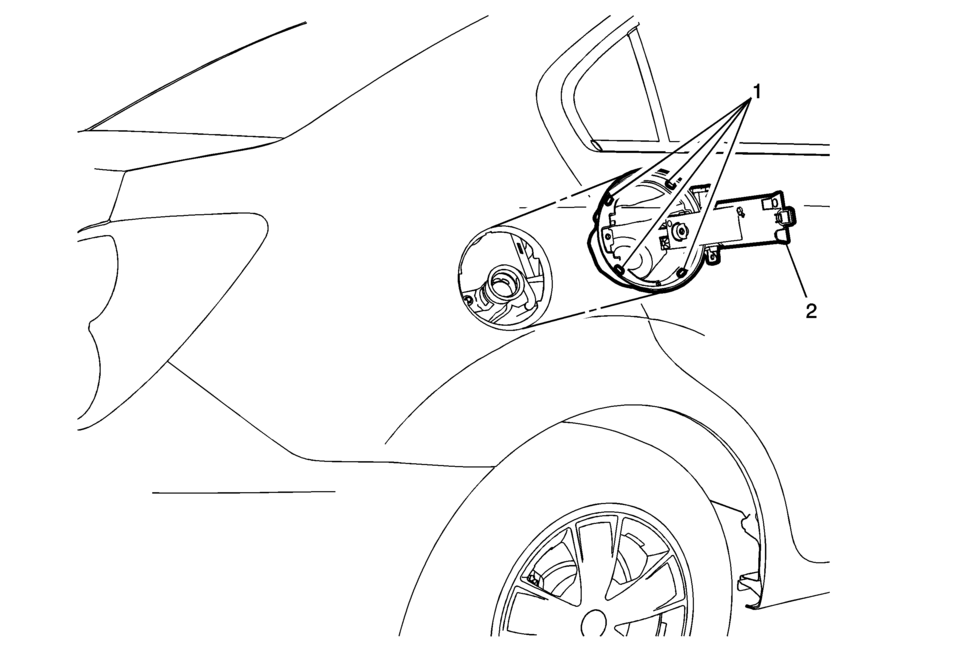

Fuel Tank Filler Door Latch Housing Retainer (Qty:?€‰4) Procedure
Release the 4 filler door latch housing retainers on the back of the housing. |
2 |
Fuel Tank Filler Door Latch Housing Procedure
Press the fuel tank filler housing outward from the fuel filler pipe and the quarter panel. |
Clutch and Differential Housing Cleaning and Inspection
Warning: Wear safety glasses to avoid injury when using compressed
air or any cleaning solvent. Bodily injury may occur if fumes are inhaled
or if skin is exposed to chemicals.
Clean the clutch housing (1) with a suitable solvent. Air dry all the parts.
Inspect ...
Timing Belt Adjustment
Special Tools
EN-652 Flywheel Holder
EN-6333 Locking Pin
EN-6340 Locking Tool
EN-6628-A Locking Tool
EN-45059 Torque Angle Sensor Kit
For equivalent regional tool, refer to Special Tools.
Removal Procedure
Remove the timing belt upper front cover. Refer to Timing Bel ...
3-5-Reverse and 4-5-6 Clutch Housing Assemble (6T30/40/45/50 - Gen 2)
Table 1:
4?? Clutch Piston Installation
Table 2:
4?? Clutch Fluid Dam Installation
Table 3:
3? Reverse Clutch Plates Installation
Table 4:
Reluctor Wheel and Piston Installation
Table 5:
4?? Clutch Plates Installation
Table 6:
...
