Engine Oil Pressure Indicator Switch Replacement

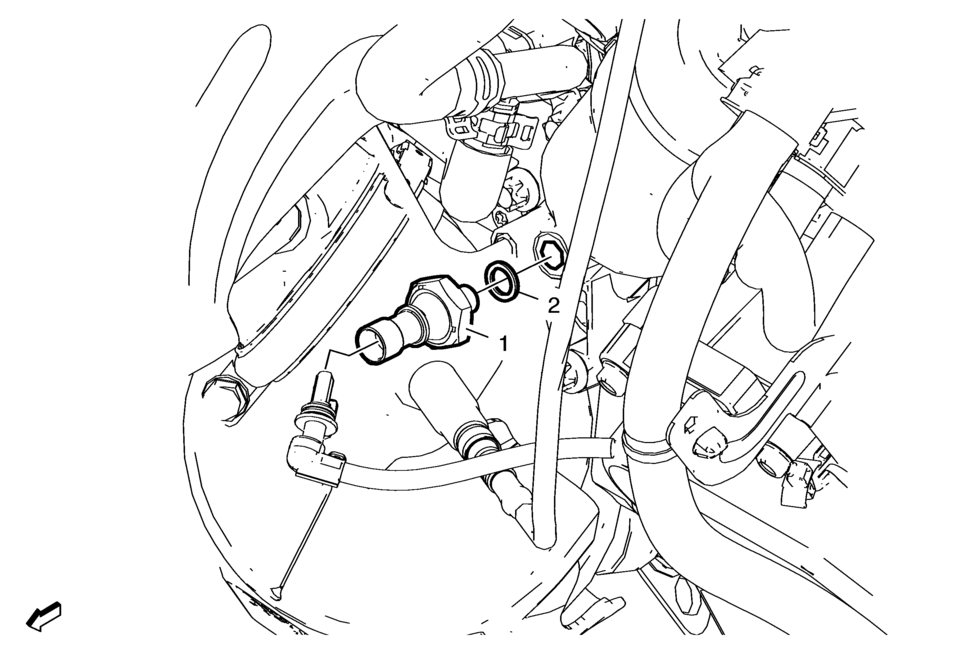

Callout

Component Name

1

Engine Oil Pressure Indicator Switch

Caution:

Refer to  Component Fastener Tightening Caution.

Procedure

Tighten


20 Y (15 lb ft)

2

Engine Oil Pressure Indicator Switch Seal Ring
