Chevrolet Sonic Repair Manual: Front Floor Console Multifunction Switch Replacement
|

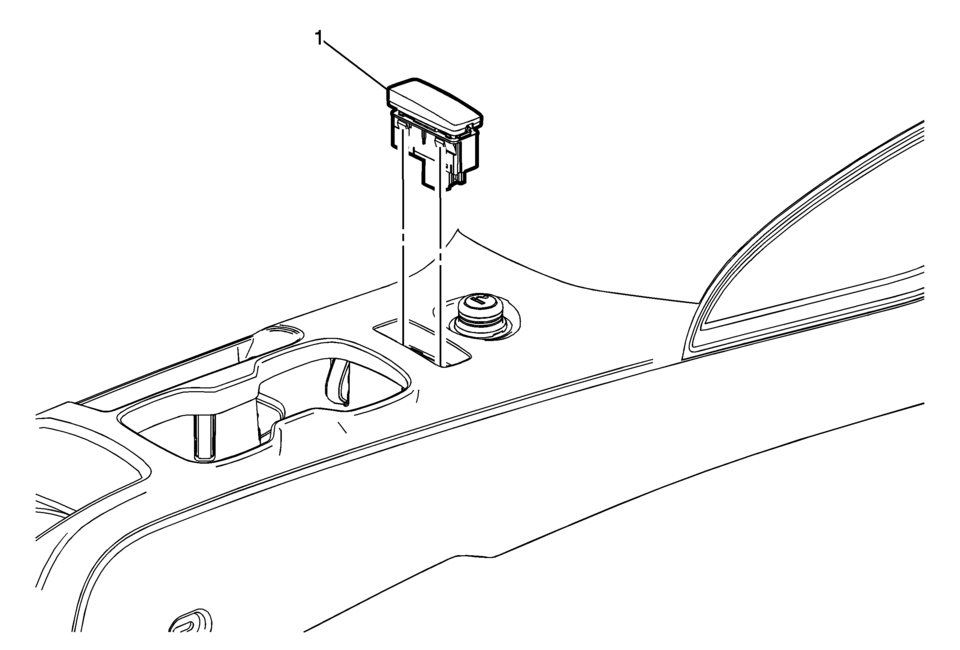

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement |
|
|
1 |
Accessory Switch
|
Turn Signal Multifunction Switch Replacement
..
Turn Signal Multifunction Switch Replacement
Callout
Component Name
Preliminary Procedure
Remove the upper trim cover and the ...
