Nissan Armada 2025-2026 Owner's Manual: Hood

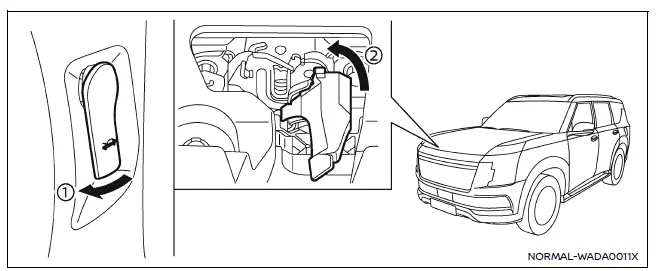

1. To open the hood of the Nissan Armada, pull the hood release handle 1 located beneath the driver’s side instrument panel. This action will cause the hood to pop up slightly.
2. Move to the front of the Nissan Armada and locate the secondary safety lever 2. Slide it sideways with your fingertips and carefully lift the hood upward.
3. When closing the Nissan Armada hood, lower it gently and ensure that it securely latches into place.
WARNING
- Always verify that the Nissan Armada hood is completely closed and properly
latched before driving.
If the hood is not secured, it may open unexpectedly while driving and obstruct visibility, potentially leading to a serious accident.
- If you notice steam or smoke coming from the engine compartment of the Nissan Armada, do not attempt to open the hood, as this may result in injury.
