Chevrolet Sonic Repair Manual: Hydraulic Valve Lash Adjuster Arm Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Valve Actuating Assembly / Hydraulic Valve Lash Adjuster Arm Installation

Note:

Hydraulic valve lash adjuster arms should be installed in their original position.

Lubricate the hydraulic valve lash adjuster arms with engine oil.

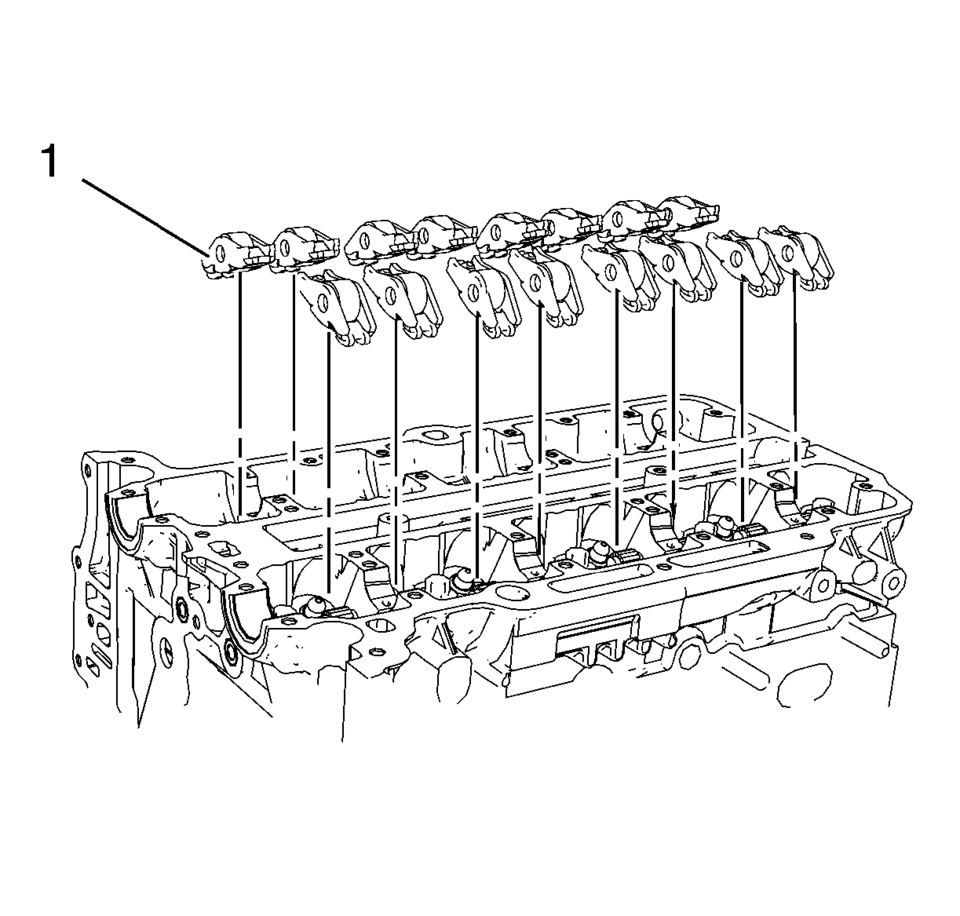

Install the 16 hydraulic valve lash adjuster arms (1).

Valve Stem Oil Seal and Valve Spring Replacement

Special Tools 207649 Rod Hairpin Clips 547324 Flange Screws EN-840 Pliers / Remover EN-958 Installer EN-45059 Angle Meter EN-50717 Kit J-43649?E Rods For equivalent regional to ...

Hydraulic Valve Lash Adjuster Arm Removal

Note: Mind the installation position of the hydraulic valve lash adjuster arms. Remove the 16 hydraulic valve lash adjuster arms (1). ...
