Chevrolet Sonic Repair Manual: Instrument Panel Center Molding Replacement (Without U58)

Chevrolet Sonic Repair Manual / Body / Body Interior / Center Console / Instrument Panel Center Molding Replacement (Without U58)

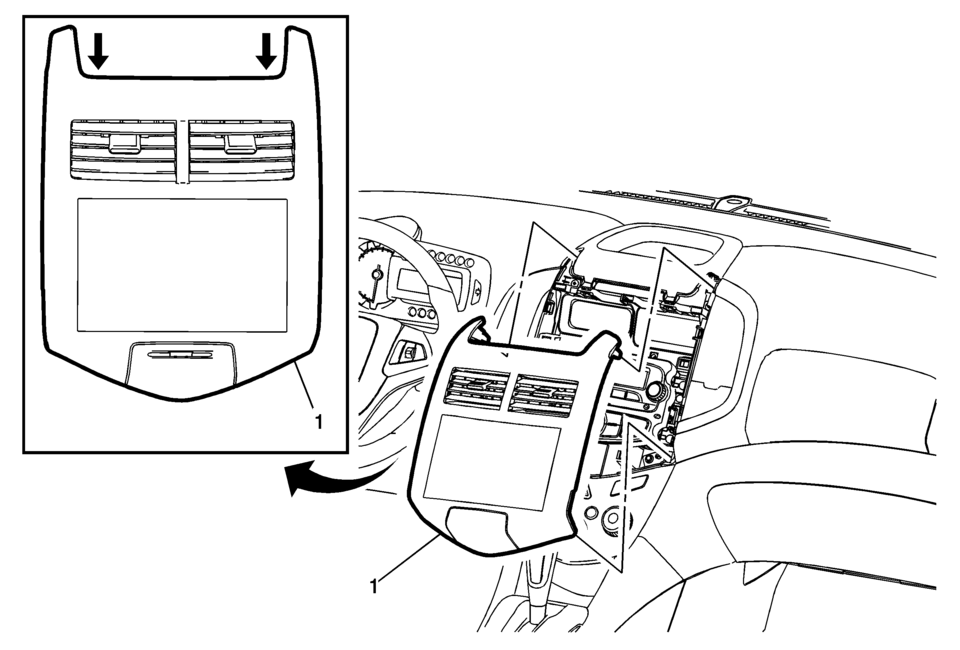

Instrument Panel Center Molding Replacement

Callout

Component Name

1

Instrument Panel Center Molding Assembly

Procedure

  1. Use a flat bladed plastic trim tool in the shown locations, then rotate the trim tool 90?° to release the top of the molding away from the instrument panel assembly.
  2. Grasp the molding with both hands, one on each side of the air outlets, and pull straight back, working from top to bottom.
  3. When replacing the center molding assembly, transfer all necessary components.
Instrument Panel Center Molding Replacement (With U58)
Instrument Panel Center Molding Replacement Callout Component Name 1 Instrument Panel Center Molding Assembly Procedu ...

Instrument Panel Center Trim Panel Replacement
Instrument Panel Center Trim Panel Replacement Callout Component Name 1 Instrument Panel Center Trim Panel (Qty:?€‰2 ...
