Chevrolet Sonic Repair Manual: Intake Camshaft Removal


    Remove the camshaft bearing cap bolts in a spiral sequence as shown one
  1. Remove the camshaft bearing cap bolts in a spiral sequence as shown one turn at a time until there is no spring tension pushing on the camshaft.

  2. Note:

    Mind the markings on the camshaft bearing caps to ensure they will be installed in the same position.

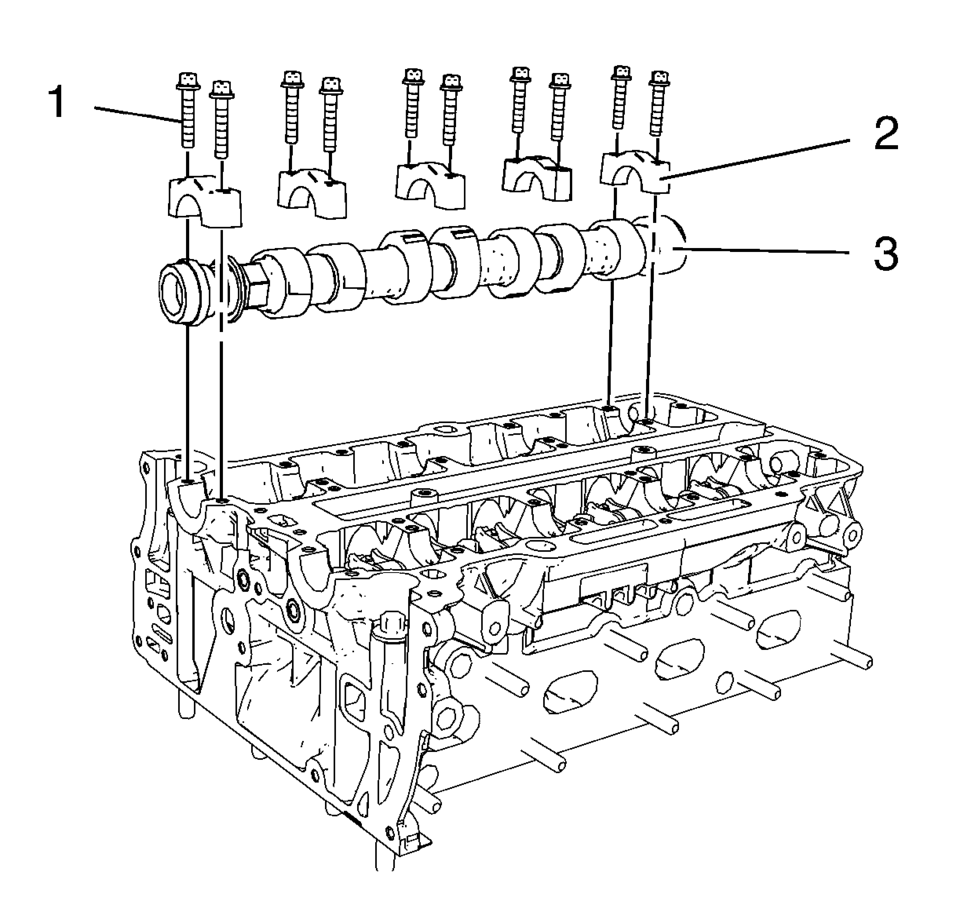

  3. Remove the 10 camshaft bearing cap bolts (1).
  4. Remove the 5 camshaft bearing caps (2).
  5. Remove the intake camshaft (3).
Intake Camshaft Installation
Note: Mind the markings on the camshaft bearing caps. Camshaft bearing caps should be installed in their original position. Lubricate camshaft and camshaft bearing caps with eng ...

Intake Camshaft Replacement
Removal Procedure Remove the camshaft intake and exhaust sprocket. Refer to Camshaft Intake and Exhaust Sprocket Replacement. Remove the camshaft bearing cap bolts in ...
