Chevrolet Sonic Repair Manual: Intake Manifold Assemble

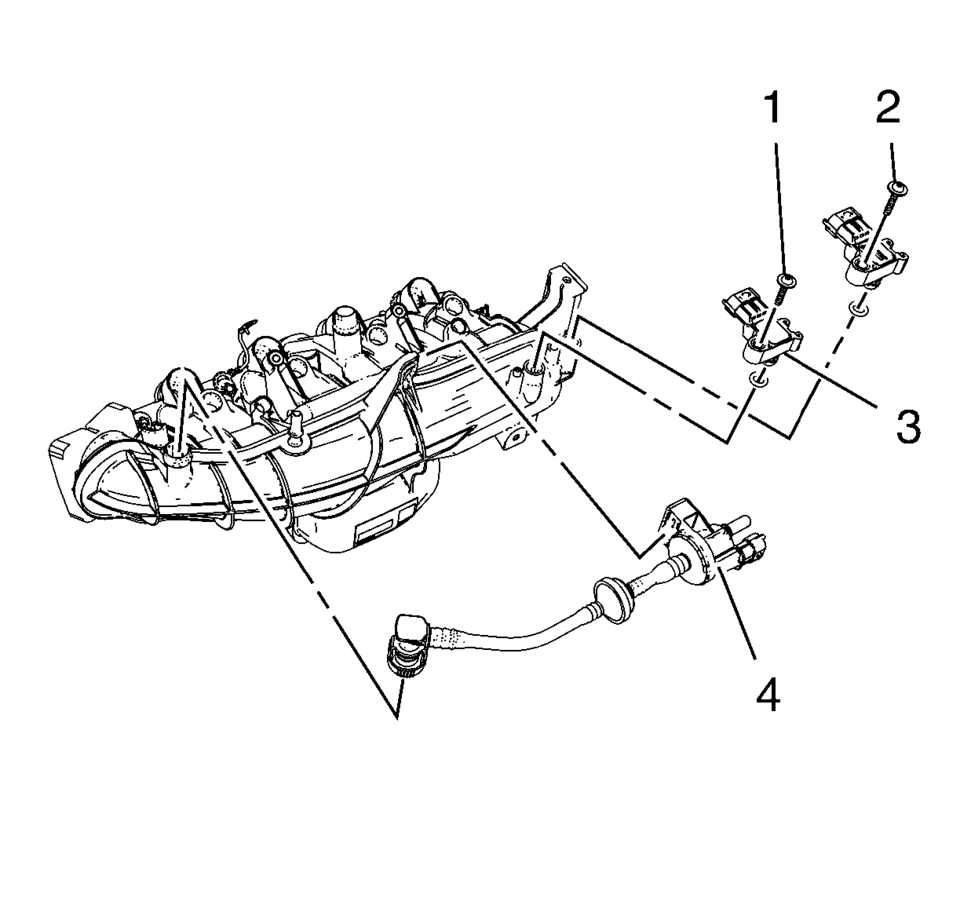

    Install the evaporative emission canister purge solenoid valve (3).
  1. Install the evaporative emission canister purge solenoid valve (3).
  2. Install the 2 manifold absolute pressure sensors (2).
  3. Install the 2 manifold absolute pressure sensor bolts (1) and tighten.

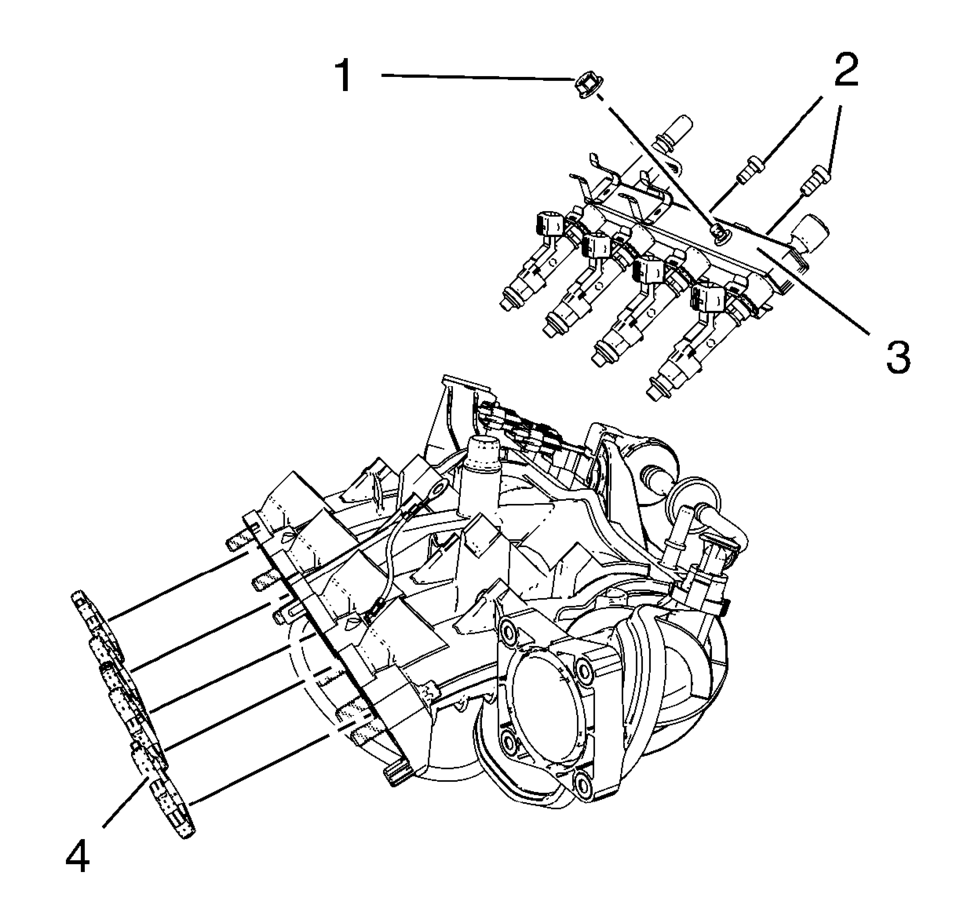

  4. Install the fuel injection fuel rail assembly (3).
  5. Caution:

    Refer to Fastener Caution.

  6. Install the 2 fuel injection rail bolts (2) and tighten to  8 Y (71 lb in)

    .

  7. Install the fuel injection rail ground cable nut (1) and tighten.
  8. Install a NEW intake manifold gasket (4).
Intake Manifold
...

Intake Manifold Assemble (1.6L LDE)
Install the 4 multiport fuel injector seals (6). Install the multiport fuel injection fuel rail (4) and the fuel injectors (5) to the intake manifold (7). ...
