Outside Rearview Mirror Motor Replacement

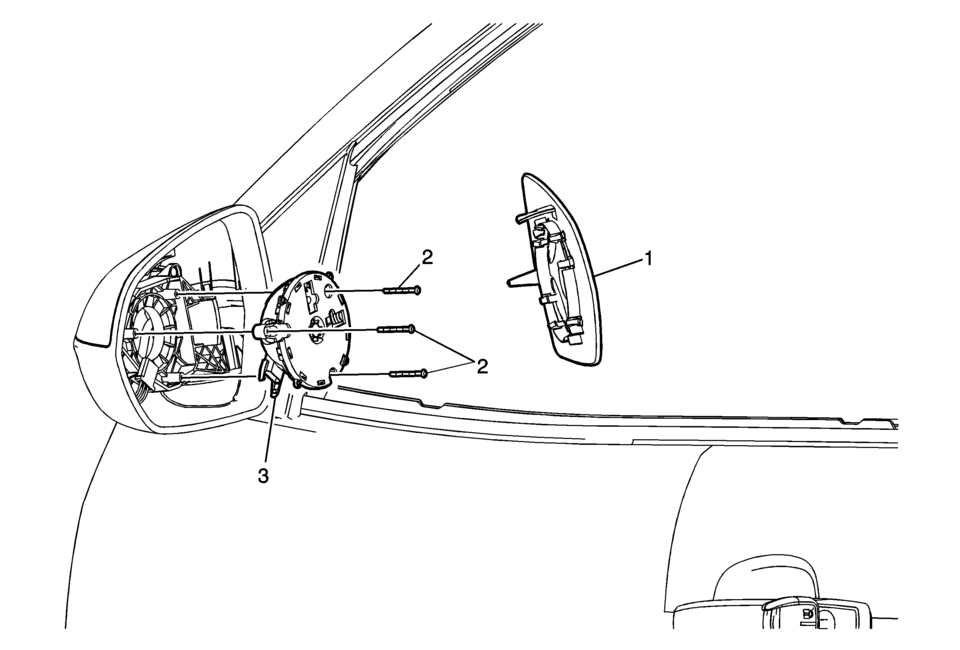

Callout

Component Name

1

Outside Rearview Mirror Glass

Procedure

Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement.

2

Outside Rearview Mirror Inner Actuator Fastener (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Procedure

Disconnect the outside mirror inner actuator electrical connector.

Tighten


5?€‰Y (44?€‰lb?€‰in)

3

Outside Rearview Mirror Inner Actuator

Note:

Inspect the outside mirror for proper operation.
