Outside Rearview Mirror Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the front side door upper front trim panel. Refer to Front Side Door Upper Front Trim Panel Replacement.
  2. Remove the outside rearview mirror bolt access hole on the front side door trim panel.

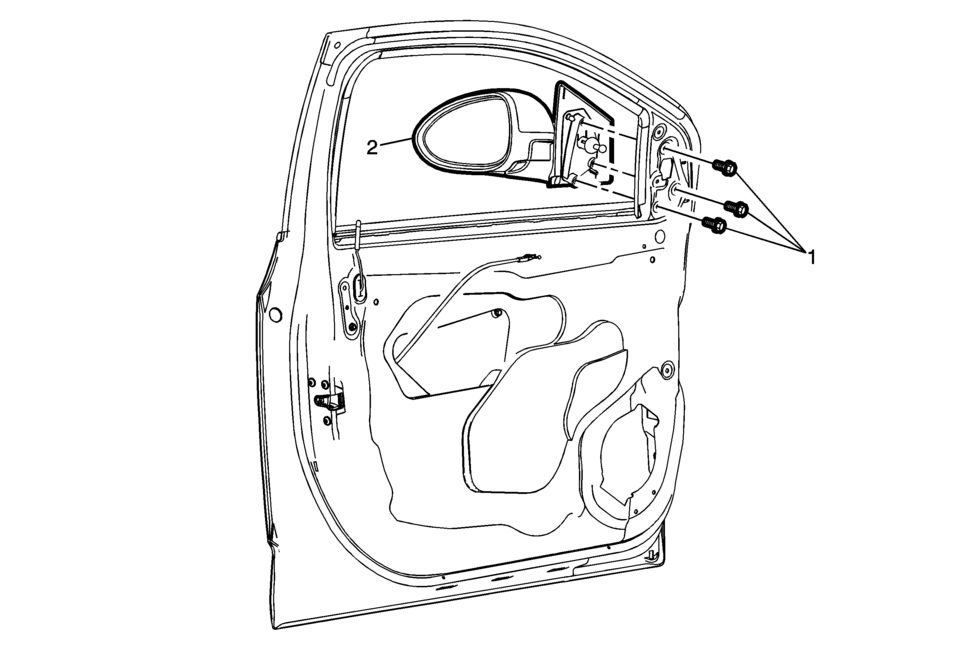

1

Outside Rearview Mirror Fastener (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Tighten


10?€‰Y (89?€‰lb?€‰in)

2

Outside Rearview Mirror

Procedure

  1. Transfer the outside rearview mirror knob.
  2. Inspect the outside mirror for proper operation before installing the door trim panel.
