Callout |
Component Name |
|---|---|
Preliminary Procedures
|
|
|
1 |

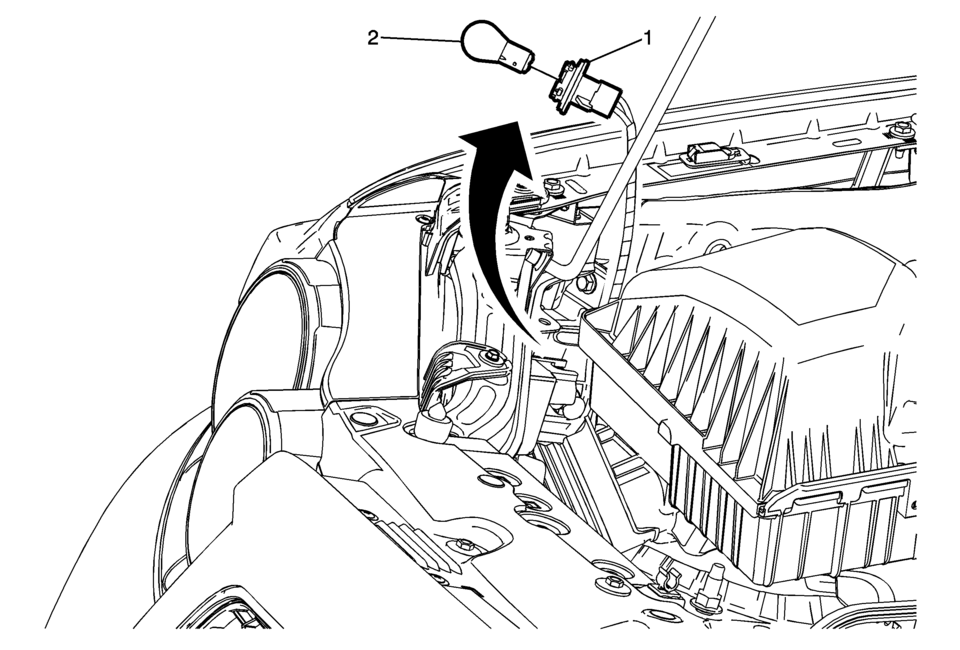

Parking and Turn Signal Lamp Bulb Socket Procedure
Rotate the bulb socket counter-clockwise and remove from the headlamp housing. |
|
2 |
Parking and Turn Signal Lamp Bulb Procedure
Push inward and rotate the parking and turn signal bulb counter-clockwise in order to remove. |
License Plate Lamp
Rear License Plate Lamp Bulb Replacement (Hatchback)Front Upper Grille Replacement
Front Upper Grille Replacement
Callout
Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
1
Radiator Upper Grille Assembly Screw (Qty:? ...
Wheel Drive Shaft Inner Joint Inspection
Inspection Procedure
Remove the front wheel drive shaft inner joint and boot. Refer to Front
Wheel Drive Shaft Replacement.
Remove the wheel drive shaft tripod bushing (1) from the tripod housing (3).
Remove the wheel drive shaft tripod housi ...
Differential Case Assemble
Special Tools
J-810721 Axle Shaft Seal Remover Support Base
R-0407011 Bearing Race Remover
R-0407012 Differential Carrier Cone Bearing Cap Driver
R-0007761 Universal Handle for Pullers and Installers
S-9407194 Speed Sensor Impeller Ring Installer
S-9407195 Pinion Gear Case Bearing I ...
