Chevrolet Sonic Repair Manual: Radiator Surge Tank Outlet Hose Replacement (LDE LUW)
|

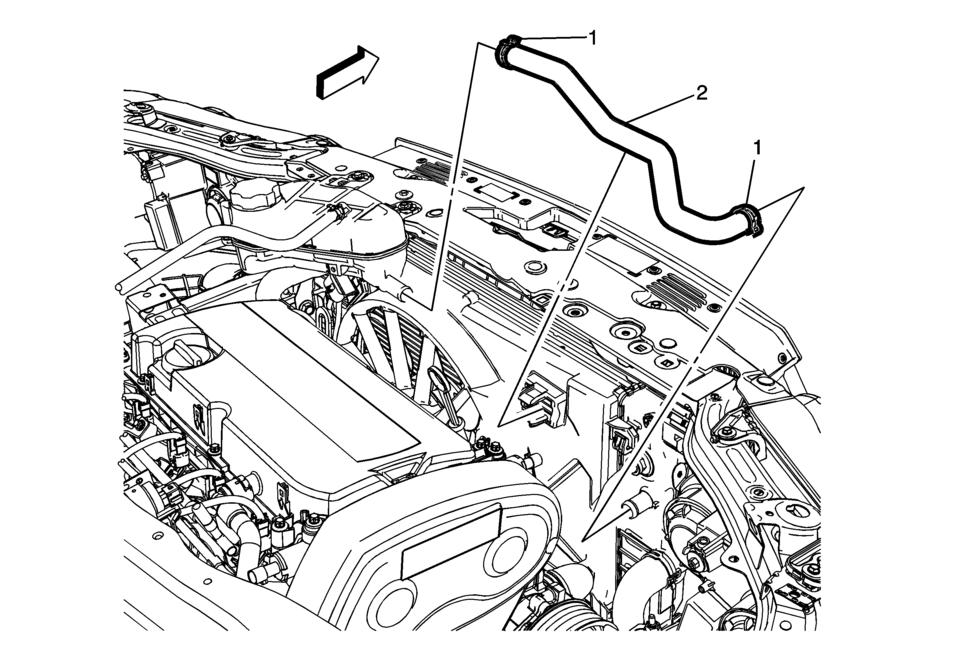

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Drain the coolant. Refer to Cooling System Draining and Filling |
|
|
1 |
Radiator Surge Tank Outlet Hose Clamps (Qty: 2) Procedure
Reposition the radiator surge tank outlet hose clamps using BO-38185 Hose Clamp Pliers Special Tools
BO-38185 Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools |
|
2 |
Radiator Surge Tank Outlet Hose Procedure
Unclip radiator surge tank outlet hose from fan shroud. |
Radiator Replacement (LUV)
Removal Procedure
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct
Replacement.
Remove the front compartment front insulator cover. Refer to Front Compartment ...
Radiator Surge Tank Outlet Hose Replacement (LUV)
Radiator Surge Tank Outlet Hose Replacement
Callout
Component Name
Preliminary Procedures
Drain the engine coolant. Refer to Coolin ...
