Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement. |
|
1 |

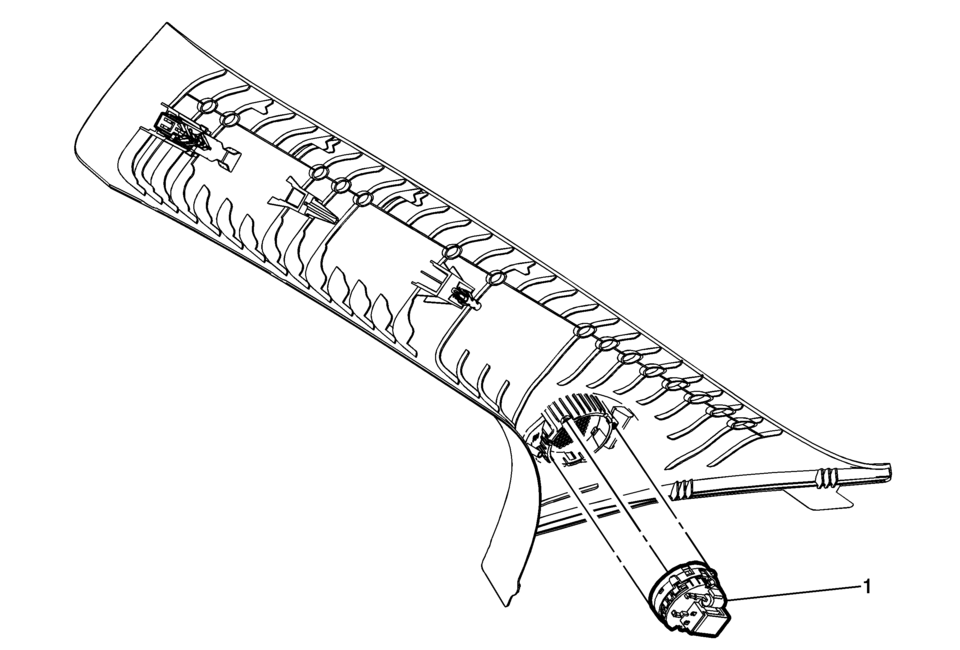

Radio Windshield Side Garnish Molding Speaker Procedure
Depress tabs to remove speaker. |
Rear Compartment Courtesy Lamp Replacement (Hatchback)
Rear Compartment Courtesy Lamp Replacement
Callout
Component Name
1
Rear Compartment Courtesy Lamp Assembly
Procedure
Use the appropriate trim tool in order to release the lamp assembly
from the rear quarter ...
Rear Side Door Upper Rear Trim Panel Replacement (Hatchback)
Rear Side Door Upper Rear Trim Panel Replacement
Callout
Component Name
1
Rear Side Door Upper Rear Trim Panel Assembly
Procedure
Pull the door upper rear trim panel away from the rear side door.
...
Piston, Connecting Rod, and Bearing Installation
Special Tools
EN-470-B Angular Torque Wrench
For equivalent regional tools, refer to Special Tools.
Adjust the piston ring joints as follows:
Upper compression ring (1).
Lower compression ring (4).
Oil rings (2) or (3).
Oil ring spacer (5). ...
